cimod::BinaryQuadraticModel< IndexType, FloatType, DataType > Class Template Reference

Class for dense binary quadratic model. More...

#include <binary_quadratic_model.hpp>

Public Types
using	DenseMatrix = Eigen::Matrix< FloatType, Eigen::Dynamic, Eigen::Dynamic, Eigen::RowMajor >
	Eigen Matrix if DataType is Dense , Matrix is equal to Eigen::Matrix if DataType is Sparse, Matrix is equal to Eigen::SparseMatrix.
using	SparseMatrix = Eigen::SparseMatrix< FloatType, Eigen::RowMajor >
using	SpIter = typename SparseMatrix::InnerIterator
using	Matrix = std::conditional_t< std::is_same_v< DataType, Dense >, DenseMatrix, SparseMatrix >
using	Vector = Eigen::Matrix< FloatType, Eigen::Dynamic, 1 >
using	json = nlohmann::json

Public Member Functions
	BinaryQuadraticModel (const Linear< IndexType, FloatType > &linear, const Quadratic< IndexType, FloatType > &quadratic, const FloatType &offset, const Vartype vartype)
	BinaryQuadraticModel constructor.
	BinaryQuadraticModel (const Linear< IndexType, FloatType > &linear, const Quadratic< IndexType, FloatType > &quadratic, const Vartype vartype)
	BinaryQuadraticModel constructor.
	BinaryQuadraticModel (const Eigen::Ref< const DenseMatrix > &mat, const std::vector< IndexType > &labels_vec, const FloatType &offset, const Vartype vartype, bool fix_format=true)
	BinaryQuadraticModel constructor (with matrix);.
	BinaryQuadraticModel (const Eigen::Ref< const DenseMatrix > &mat, const std::vector< IndexType > &labels_vec, const Vartype vartype, bool fix_format=true)
	BinaryQuadraticModel constructor (with matrix);.
	BinaryQuadraticModel (const SparseMatrix &mat, const std::vector< IndexType > &labels_vec, const FloatType &offset, const Vartype vartype)
	BinaryQuadraticModel constructor (with sparse matrix); this constructor is for developers.
	BinaryQuadraticModel (const SparseMatrix &mat, const std::vector< IndexType > &labels_vec, const Vartype vartype)
	BinaryQuadraticModel constructor (with sparse matrix); this constructor is for developers.
	BinaryQuadraticModel (const BinaryQuadraticModel &)=default
size_t	get_num_variables () const
	get the number of variables
size_t	length () const
	Return the number of variables.
bool	contains (const IndexType &v) const
	Return true if the variable contains v.
FloatType	get_linear (IndexType label_i) const
	Get the element of linear object.
Linear< IndexType, FloatType >	get_linear () const
	Get linear object.
FloatType	get_quadratic (IndexType label_i, IndexType label_j) const
	Get the element of quadratic object.
Quadratic< IndexType, FloatType >	get_quadratic () const
	Get uadratic object.
FloatType	get_offset () const
	Get the offset.
Vartype	get_vartype () const
	Get the vartype object.
const std::vector< IndexType > &	get_variables () const
	Get variables.
BinaryQuadraticModel< IndexType, FloatType, DataType >	empty (Vartype vartype)
	Create an empty BinaryQuadraticModel.
void	add_variable (const IndexType &v, const FloatType &bias)
	Add variable v and/or its bias to a binary quadratic model.
void	add_variables_from (const Linear< IndexType, FloatType > &linear)
	Add variables and/or linear biases to a binary quadratic model.
void	add_interaction (const IndexType &u, const IndexType &v, const FloatType &bias)
	Add an interaction and/or quadratic bias to a binary quadratic model.
void	add_interactions_from (const Quadratic< IndexType, FloatType > &quadratic)
	Add interactions and/or quadratic biases to a binary quadratic model.
void	remove_variable (const IndexType &v)
	Remove variable v and all its interactions from a binary quadratic model.
void	remove_variables_from (const std::vector< IndexType > &variables)
	Remove specified variables and all of their interactions from a binary quadratic model.
void	remove_interaction (const IndexType &u, const IndexType &v)
	Remove interaction of variables u, v from a binary quadratic model.
void	remove_interactions_from (const std::vector< std::pair< IndexType, IndexType > > &interactions)
	Remove all specified interactions from the binary quadratic model.
void	add_offset (const FloatType &offset)
	Add specified value to the offset of a binary quadratic model.
void	remove_offset ()
	Set the binary quadratic model's offset to zero.
void	scale (const FloatType &scalar, const std::vector< IndexType > &ignored_variables={}, const std::vector< std::pair< IndexType, IndexType > > &ignored_interactions={}, const bool ignored_offset=false)
	Multiply by the specified scalar all the biases and offset of a binary quadratic model.
void	normalize (const std::pair< FloatType, FloatType > &bias_range={ 1.0, 1.0 }, const bool use_quadratic_range=false, const std::pair< FloatType, FloatType > &quadratic_range={ 1.0, 1.0 }, const std::vector< IndexType > &ignored_variables={}, const std::vector< std::pair< IndexType, IndexType > > &ignored_interactions={}, const bool ignored_offset=false)
	Normalizes the biases of the binary quadratic model such that they fall in the provided range(s), and adjusts the offset appropriately.
void	fix_variable (const IndexType &v, const int32_t &value)
	Fix the value of a variable and remove it from a binary quadratic model.
void	fix_variables (const std::vector< std::pair< IndexType, int32_t > > &fixed)
	Fix the value of the variables and remove it from a binary quadratic model.
void	flip_variable (const IndexType &v)
	Flip variable v in a binary quadratic model.
void	change_vartype (const Vartype &vartype)
	‍**
BinaryQuadraticModel< IndexType, FloatType, DataType >	change_vartype (const Vartype &vartype, bool inplace)
	Create a binary quadratic model with the specified vartype.
FloatType	energy (const Sample< IndexType > &sample) const
	Determine the energy of the specified sample of a binary quadratic model.
std::vector< FloatType >	energies (const std::vector< Sample< IndexType > > &samples_like) const
	Determine the energies of the given samples.
std::tuple< Quadratic< IndexType, FloatType >, FloatType >	to_qubo ()
	Convert a binary quadratic model to QUBO format.
std::tuple< Linear< IndexType, FloatType >, Quadratic< IndexType, FloatType >, FloatType >	to_ising ()
	Convert a binary quadratic model to Ising format.
Matrix	interaction_matrix () const
	generate (Dense or Sparse) interaction matrix with given list of indices The generated matrix will be the following triangular matrix:
template<typename T = DataType>
json	to_serializable (dispatch_t< T, Dense >=nullptr) const
	Convert the binary quadratic model to a dense-version serializable object.
template<typename T = DataType>
json	to_serializable (dispatch_t< T, Sparse >=nullptr) const
	Convert the binary quadratic model to a serializable object.

Static Public Member Functions
static BinaryQuadraticModel< IndexType, FloatType, DataType >	from_qubo (const Quadratic< IndexType, FloatType > &Q, FloatType offset=0.0)
	Create a binary quadratic model from a QUBO model.
static BinaryQuadraticModel< IndexType, FloatType, DataType >	from_ising (const Linear< IndexType, FloatType > &linear, const Quadratic< IndexType, FloatType > &quadratic, FloatType offset=0.0)
	Create a binary quadratic model from an Ising problem.
template<typename IndexType_serial = IndexType, typename FloatType_serial = FloatType, typename T = DataType>
static BinaryQuadraticModel< IndexType_serial, FloatType_serial, DataType >	from_serializable (const json &input, dispatch_t< T, Dense >=nullptr)
	Create a BinaryQuadraticModel instance from a serializable object.
template<typename IndexType_serial = IndexType, typename FloatType_serial = FloatType, typename T = DataType>
static BinaryQuadraticModel< IndexType_serial, FloatType_serial, DataType >	from_serializable (const json &input, dispatch_t< T, Sparse >=nullptr)
	Create a BinaryQuadraticModel instance from a serializable object.

Protected Member Functions

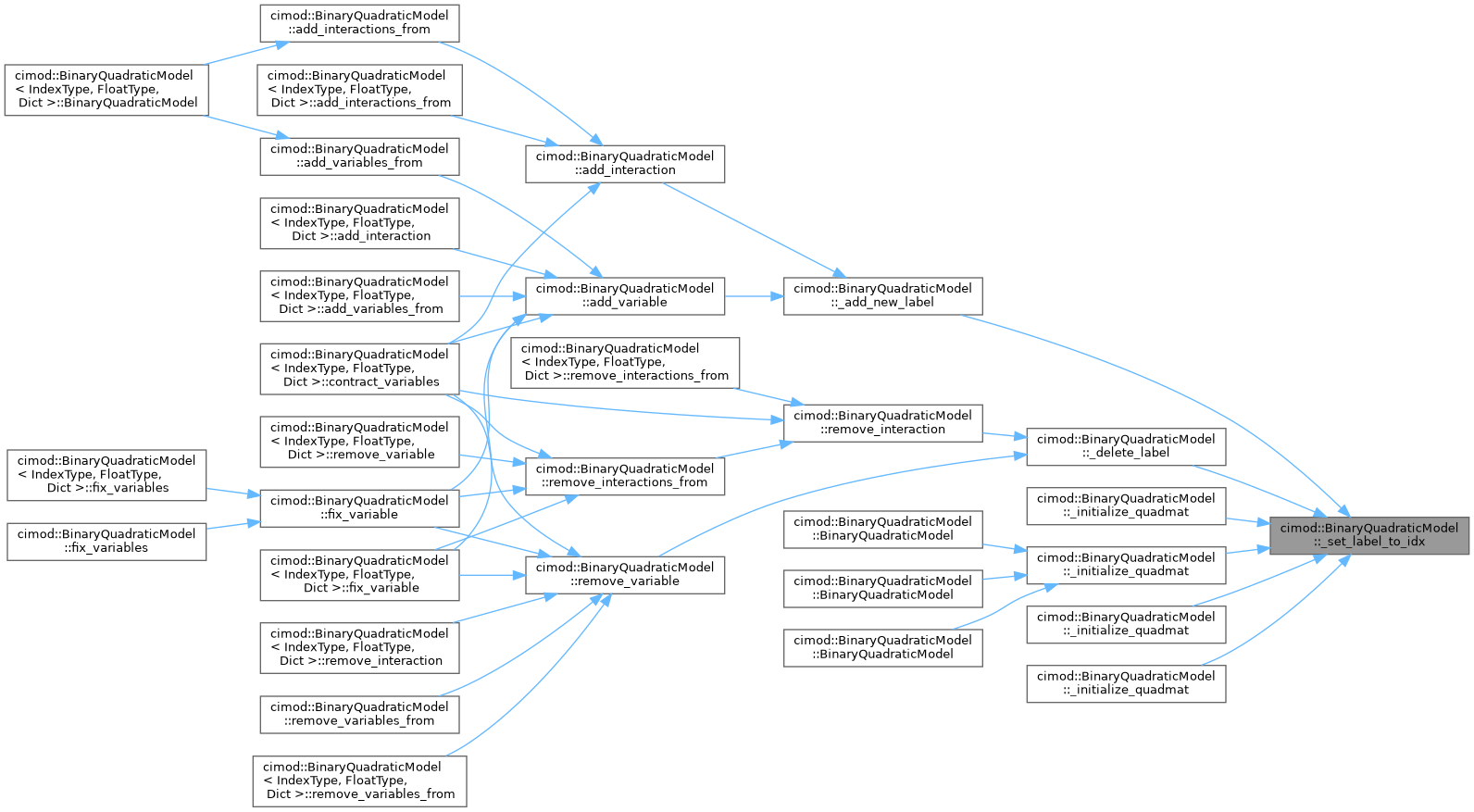

void	_set_label_to_idx ()
	set _label_to_idx from _idx_to_label
template<typename T = DataType>
FloatType &	_quadmat_get (size_t i, size_t j, dispatch_t< T, Dense >=nullptr)
	access elements for dense matrix
template<typename T = DataType>
FloatType	_quadmat_get (size_t i, size_t j, dispatch_t< T, Dense >=nullptr) const
	access elements for dense matrix
template<typename T = DataType>
FloatType &	_quadmat_get (size_t i, size_t j, dispatch_t< T, Sparse >=nullptr)
	access elements for sparse matrix
template<typename T = DataType>
FloatType	_quadmat_get (size_t i, size_t j, dispatch_t< T, Sparse >=nullptr) const
	access elements for sparse matrix
FloatType &	_mat (IndexType label_i, IndexType label_j)
	get reference of _quadmat(i,j)
FloatType &	_mat (IndexType label_i)
	get reference of _quadmat(i,i)
FloatType	_mat (IndexType label_i, IndexType label_j) const
	get reference of _quadmat(i,j)
FloatType	_mat (IndexType label_i) const
	get reference of _quadmat(i,i)
template<typename T = DataType>
FloatType	_max_linear (dispatch_t< T, Dense >=nullptr) const
	calculate maximum element in linear term for dense graph
template<typename T = DataType>
FloatType	_max_quadratic (dispatch_t< T, Dense >=nullptr) const
	calculate maximum element in quadratic term for dense graph
template<typename T = DataType>
FloatType	_min_linear (dispatch_t< T, Dense >=nullptr) const
	calculate minimum element in linear term for dense graph
template<typename T = DataType>
FloatType	_min_quadratic (dispatch_t< T, Dense >=nullptr) const
	calculate minimum element in quadratic term for dense graph
template<typename T = DataType>
FloatType	_max_linear (dispatch_t< T, Sparse >=nullptr) const
	calculate maximum element in linear term for dense graph
template<typename T = DataType>
FloatType	_max_quadratic (dispatch_t< T, Sparse >=nullptr) const
	calculate maximum element in quadratic term for dense graph
template<typename T = DataType>
FloatType	_min_linear (dispatch_t< T, Sparse >=nullptr) const
	calculate minimum element in linear term for dense graph
template<typename T = DataType>
FloatType	_min_quadratic (dispatch_t< T, Sparse >=nullptr) const
	calculate minimum element in quadratic term for dense graph
template<typename T = DataType>
void	_insert_label_into_mat (IndexType label_i, dispatch_t< T, Dense >=nullptr)
	insert row and column that corresponds to added label into _quadmat for dense matrix
template<typename T = DataType>
void	_insert_label_into_mat (IndexType label_i, dispatch_t< T, Sparse >=nullptr)
	insert row and column that corresponds to added label into _quadmat for sparse matrix
template<typename T = DataType>
void	_delete_label_from_mat (IndexType label_i, dispatch_t< T, Dense >=nullptr)
	delete row and column that corresponds to existing label from _quadmat for dense matrix
template<typename T = DataType>
void	_delete_label_from_mat (IndexType label_i, dispatch_t< T, Sparse >=nullptr)
	delete row and column that corresponds to existing label from _quadmat for sparse matrix
void	_add_new_label (IndexType label_i)
	add new label if label_i already exists, this process is skipped.
void	_delete_label (IndexType label_i, bool force_delete=true)
	delete label if label_i does not exist, this process is skipped.
template<typename T = DataType>
void	_initialize_quadmat (const Linear< IndexType, FloatType > &linear, const Quadratic< IndexType, FloatType > &quadratic, dispatch_t< T, Dense >=nullptr)
	initialize matrix with linear and quadratic dicts (for dense matrix)
template<typename T = DataType>
void	_initialize_quadmat (const Linear< IndexType, FloatType > &linear, const Quadratic< IndexType, FloatType > &quadratic, dispatch_t< T, Sparse >=nullptr)
	initialize matrix with linear and quadratic dicts (for sparse matrix)
template<typename T = DataType>
void	_add_triangular_elements (const DenseMatrix &mat, bool fix_format, dispatch_t< T, Dense >=nullptr)
	add non-diagonal elements to upper triangular components for dense matrix
template<typename T = DataType>
void	_add_triangular_elements (const DenseMatrix &mat, bool fix_format, dispatch_t< T, Sparse >=nullptr)
	add non-diagonal elements to upper triangular components for sparse matrix

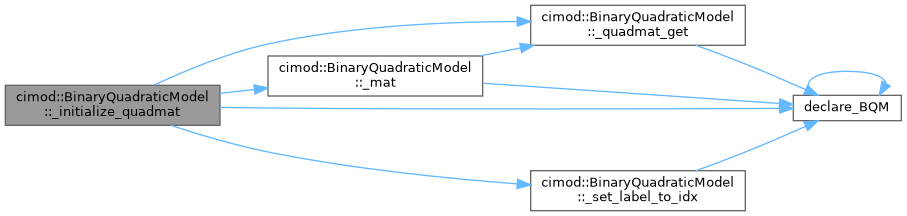

void	_initialize_quadmat (const DenseMatrix &mat, const std::vector< IndexType > &labels_vec, bool fix_format)
	initialize matrix with matrix and labels the form of matrix is assumed to be the following two forms:
Linear< IndexType, FloatType >	_generate_linear () const
template<typename T = DataType>
Quadratic< IndexType, FloatType >	_generate_quadratic (dispatch_t< T, Dense >=nullptr) const
template<typename T = DataType>
Quadratic< IndexType, FloatType >	_generate_quadratic (dispatch_t< T, Sparse >=nullptr) const
void	_initialize_quadmat (const SparseMatrix &mat, const std::vector< IndexType > &labels_vec)
	initialize matrix with matrix and labels the form of matrix is assumed to be the following form:
template<typename T = DataType>
void	_spin_to_binary (dispatch_t< T, Dense >=nullptr)
	change internal variable from Ising to QUBO ones for dense matrix The following conversion is applied:
template<typename T = DataType>
void	_spin_to_binary (dispatch_t< T, Sparse >=nullptr)
	change internal variable from Ising to QUBO ones for sparse matrix The following conversion is applied:
template<typename T = DataType>
void	_binary_to_spin (dispatch_t< T, Dense >=nullptr)
	change internal variable from QUBO to Ising ones for dense matrix The following conversion is applied:
template<typename T = DataType>
void	_binary_to_spin (dispatch_t< T, Sparse >=nullptr)
	change internal variable from QUBO to Ising ones for sparse matrix The following conversion is applied:

Protected Attributes
Matrix	_quadmat
	quadratic dense-type matrix The stored matrix has the following triangular form:
std::vector< IndexType >	_idx_to_label
	vector for converting index to label the list is asssumed to be sorted
std::unordered_map< IndexType, size_t >	_label_to_idx
	dict for converting label to index
FloatType	m_offset
	The energy offset associated with the model.
Vartype	m_vartype = Vartype::NONE
	The model's type.

Private Types
template<typename T , typename U >
using	dispatch_t = std::enable_if_t< std::is_same_v< T, U >, std::nullptr_t >
	template type for dispatch used for SFINAE

Detailed Description

template<typename IndexType, typename FloatType, typename DataType>
class cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >

Class for dense binary quadratic model.

Template Parameters

IndexType	index type. type must be hashable and comparable.
FloatType
IndexType

Member Typedef Documentation

DenseMatrix

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::DenseMatrix = Eigen::Matrix<FloatType, Eigen::Dynamic, Eigen::Dynamic, Eigen::RowMajor>

Eigen Matrix if DataType is Dense , Matrix is equal to Eigen::Matrix if DataType is Sparse, Matrix is equal to Eigen::SparseMatrix.

dispatch_t

template<typename IndexType , typename FloatType , typename DataType >

template<typename T , typename U >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::dispatch_t = std::enable_if_t<std::is_same_v<T, U>, std::nullptr_t>

private

template type for dispatch used for SFINAE

Template Parameters

T
U

json

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::json = nlohmann::json

Matrix

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::Matrix = std::conditional_t<std::is_same_v<DataType, Dense>, DenseMatrix, SparseMatrix>

SparseMatrix

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::SparseMatrix = Eigen::SparseMatrix<FloatType, Eigen::RowMajor>

SpIter

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::SpIter = typename SparseMatrix::InnerIterator

Vector

template<typename IndexType , typename FloatType , typename DataType >

using cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::Vector = Eigen::Matrix<FloatType, Eigen::Dynamic, 1>

Constructor & Destructor Documentation

BinaryQuadraticModel() [1/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const Linear< IndexType, FloatType > &  linear, const Quadratic< IndexType, FloatType > &  quadratic, const FloatType &  offset, const Vartype  vartype  )

inline

BinaryQuadraticModel constructor.

Parameters

linear
quadratic
offset
vartype

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat().

Here is the call graph for this function:

BinaryQuadraticModel() [2/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const Linear< IndexType, FloatType > &  linear, const Quadratic< IndexType, FloatType > &  quadratic, const Vartype  vartype  )

inline

BinaryQuadraticModel constructor.

Parameters

linear
quadratic
vartype

BinaryQuadraticModel() [3/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const Eigen::Ref< const DenseMatrix > &  mat, const std::vector< IndexType > &  labels_vec, const FloatType &  offset, const Vartype  vartype, bool  fix_format = true  )

inline

BinaryQuadraticModel constructor (with matrix);.

Parameters

mat
labels_vec
offset
vartype

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), and declare_BQM().

Here is the call graph for this function:

BinaryQuadraticModel() [4/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const Eigen::Ref< const DenseMatrix > &  mat, const std::vector< IndexType > &  labels_vec, const Vartype  vartype, bool  fix_format = true  )

inline

BinaryQuadraticModel constructor (with matrix);.

Parameters

mat
labels_vec
vartype

BinaryQuadraticModel() [5/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const SparseMatrix &  mat, const std::vector< IndexType > &  labels_vec, const FloatType &  offset, const Vartype  vartype  )

inline

BinaryQuadraticModel constructor (with sparse matrix); this constructor is for developers.

Parameters

mat
labels_vec
offset
vartype

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), and declare_BQM().

Here is the call graph for this function:

BinaryQuadraticModel() [6/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const SparseMatrix &  mat, const std::vector< IndexType > &  labels_vec, const Vartype  vartype  )

inline

BinaryQuadraticModel constructor (with sparse matrix); this constructor is for developers.

Parameters

mat
labels_vec
vartype

BinaryQuadraticModel() [7/7]

template<typename IndexType , typename FloatType , typename DataType >

cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel ( const BinaryQuadraticModel< IndexType, FloatType, DataType > &  )

default

Member Function Documentation

_add_new_label()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label ( IndexType  label_i )

inlineprotected

add new label if label_i already exists, this process is skipped.

Parameters

label_i

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interaction(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variable().

Here is the call graph for this function:

Here is the caller graph for this function:

_add_triangular_elements() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements ( const DenseMatrix &  mat, bool  fix_format, dispatch_t< T, Dense >  = nullptr  )

inlineprotected

add non-diagonal elements to upper triangular components for dense matrix

Template Parameters

T

Parameters

mat
fix_format

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat().

Here is the call graph for this function:

Here is the caller graph for this function:

_add_triangular_elements() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements ( const DenseMatrix &  mat, bool  fix_format, dispatch_t< T, Sparse >  = nullptr  )

inlineprotected

add non-diagonal elements to upper triangular components for sparse matrix

Template Parameters

T

Parameters

mat
fix_format

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_binary_to_spin() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin ( dispatch_t< T, Dense >  = nullptr )

inlineprotected

change internal variable from QUBO to Ising ones for dense matrix The following conversion is applied:

\[ \mathrm{offset} += \frac{1}{4}\sum_{i<j} Q_{ij} + \frac{1}{2}\sum_{i}Q_{ii} \]

\[ h_i += \frac{1}{4}\left(\sum_{j}Q_{ji}+\sum_{j}Q_{ij}\right) + \frac{1}{2}Q_{ii} \]

\[ J_{ij} = \frac{1}{4}Q_{ij} \]

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype().

Here is the call graph for this function:

Here is the caller graph for this function:

_binary_to_spin() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin ( dispatch_t< T, Sparse >  = nullptr )

inlineprotected

change internal variable from QUBO to Ising ones for sparse matrix The following conversion is applied:

\[ \mathrm{offset} += \frac{1}{4}\sum_{i<j} Q_{ij} + \frac{1}{2}\sum_{i}Q_{ii} \]

\[ h_i += \frac{1}{4}\left(\sum_{j}Q_{ji}+\sum_{j}Q_{ij}\right) + \frac{1}{2}Q_{ii} \]

\[ J_{ij} = \frac{1}{4}Q_{ij} \]

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Here is the call graph for this function:

_delete_label()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label ( IndexType  label_i, bool  force_delete = true  )

inlineprotected

delete label if label_i does not exist, this process is skipped.

Parameters

label_i
force_delete	if true, delete label whenever there exists corresponding nonzero elements in the matrix. otherwise, delete label only if there are no corresponding nonzero elements in the matrix.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interaction(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variable().

Here is the call graph for this function:

Here is the caller graph for this function:

_delete_label_from_mat() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat ( IndexType  label_i, dispatch_t< T, Dense >  = nullptr  )

inlineprotected

delete row and column that corresponds to existing label from _quadmat for dense matrix

Parameters

label_i

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label().

Here is the call graph for this function:

Here is the caller graph for this function:

_delete_label_from_mat() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat ( IndexType  label_i, dispatch_t< T, Sparse >  = nullptr  )

inlineprotected

delete row and column that corresponds to existing label from _quadmat for sparse matrix

Parameters

label_i

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_generate_linear()

template<typename IndexType , typename FloatType , typename DataType >

Linear< IndexType, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_linear ( ) const

inlineprotected

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_linear().

Here is the call graph for this function:

Here is the caller graph for this function:

_generate_quadratic() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

Quadratic< IndexType, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic ( dispatch_t< T, Dense >  = nullptr ) const

inlineprotected

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_quadratic().

Here is the call graph for this function:

Here is the caller graph for this function:

_generate_quadratic() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

Quadratic< IndexType, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic ( dispatch_t< T, Sparse >  = nullptr ) const

inlineprotected

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables().

Here is the call graph for this function:

_initialize_quadmat() [1/4]

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat ( const DenseMatrix &  mat, const std::vector< IndexType > &  labels_vec, bool  fix_format  )

inlineprotected

initialize matrix with matrix and labels the form of matrix is assumed to be the following two forms:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ J_{1,0} & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ J_{N-1,0} & J_{N-1,1} & \cdots & J_{N-1,N-1} & h_{N-1}\\ h_{0} & h_{1} & \cdots & h_{N-1} & 1 \\ \end{pmatrix} \]

or

\[ \begin{pmatrix} h_{0} & J_{0,1} & \cdots & J_{0,N-1}\\ J_{1,0} & h_{1} & \cdots & J_{1,N-1}\\ \vdots & \vdots & \vdots & \vdots\\ J_{N-1,0} & J_{N-1,1} & \cdots & h_{N-1}\\ \end{pmatrix} \]

if fix_format is set to false, the following shape is assumed:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Parameters

mat
labels
fix_format

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Here is the call graph for this function:

_initialize_quadmat() [2/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat ( const Linear< IndexType, FloatType > &  linear, const Quadratic< IndexType, FloatType > &  quadratic, dispatch_t< T, Dense >  = nullptr  )

inlineprotected

initialize matrix with linear and quadratic dicts (for dense matrix)

Parameters

linear
quadratic

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::BinaryQuadraticModel().

Here is the call graph for this function:

Here is the caller graph for this function:

_initialize_quadmat() [3/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat ( const Linear< IndexType, FloatType > &  linear, const Quadratic< IndexType, FloatType > &  quadratic, dispatch_t< T, Sparse >  = nullptr  )

inlineprotected

initialize matrix with linear and quadratic dicts (for sparse matrix)

Parameters

linear
quadratic

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Here is the call graph for this function:

_initialize_quadmat() [4/4]

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat ( const SparseMatrix &  mat, const std::vector< IndexType > &  labels_vec  )

inlineprotected

initialize matrix with matrix and labels the form of matrix is assumed to be the following form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Parameters

mat
labels_vec

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), and declare_BQM().

Here is the call graph for this function:

_insert_label_into_mat() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat ( IndexType  label_i, dispatch_t< T, Dense >  = nullptr  )

inlineprotected

insert row and column that corresponds to added label into _quadmat for dense matrix

Parameters

label_i

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label().

Here is the call graph for this function:

Here is the caller graph for this function:

_insert_label_into_mat() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat ( IndexType  label_i, dispatch_t< T, Sparse >  = nullptr  )

inlineprotected

insert row and column that corresponds to added label into _quadmat for sparse matrix

Parameters

label_i

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_mat() [1/4]

template<typename IndexType , typename FloatType , typename DataType >

FloatType & cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat ( IndexType  label_i )

inlineprotected

get reference of _quadmat(i,i)

Parameters

label_i

Returns

reference of _quadmat(i,i)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Here is the call graph for this function:

_mat() [2/4]

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat ( IndexType  label_i ) const

inlineprotected

get reference of _quadmat(i,i)

Parameters

label_i

Returns

reference of _quadmat(i,i)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Here is the call graph for this function:

_mat() [3/4]

template<typename IndexType , typename FloatType , typename DataType >

FloatType & cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat ( IndexType  label_i, IndexType  label_j  )

inlineprotected

get reference of _quadmat(i,j)

Parameters

label_i
label_j

Returns

reference of _quadmat(i,j)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interaction(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_quadratic(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interaction().

Here is the call graph for this function:

Here is the caller graph for this function:

_mat() [4/4]

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat ( IndexType  label_i, IndexType  label_j  ) const

inlineprotected

get reference of _quadmat(i,j)

Parameters

label_i
label_j

Returns

reference of _quadmat(i,j)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), and declare_BQM().

Here is the call graph for this function:

_max_linear() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_linear ( dispatch_t< T, Dense >  = nullptr ) const

inlineprotected

calculate maximum element in linear term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_max_linear() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_linear ( dispatch_t< T, Sparse >  = nullptr ) const

inlineprotected

calculate maximum element in linear term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_max_quadratic() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_quadratic ( dispatch_t< T, Dense >  = nullptr ) const

inlineprotected

calculate maximum element in quadratic term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_max_quadratic() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_quadratic ( dispatch_t< T, Sparse >  = nullptr ) const

inlineprotected

calculate maximum element in quadratic term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_min_linear() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_linear ( dispatch_t< T, Dense >  = nullptr ) const

inlineprotected

calculate minimum element in linear term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_min_linear() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_linear ( dispatch_t< T, Sparse >  = nullptr ) const

inlineprotected

calculate minimum element in linear term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_min_quadratic() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_quadratic ( dispatch_t< T, Dense >  = nullptr ) const

inlineprotected

calculate minimum element in quadratic term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_min_quadratic() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_quadratic ( dispatch_t< T, Sparse >  = nullptr ) const

inlineprotected

calculate minimum element in quadratic term for dense graph

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_quadmat_get() [1/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType & cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get ( size_t  i, size_t  j, dispatch_t< T, Dense >  = nullptr  )

inlineprotected

access elements for dense matrix

Template Parameters

T

Parameters

i
j
dispatch_t

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat().

Here is the call graph for this function:

Here is the caller graph for this function:

_quadmat_get() [2/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get ( size_t  i, size_t  j, dispatch_t< T, Dense >  = nullptr  ) const

inlineprotected

access elements for dense matrix

Template Parameters

T

Parameters

i
j
dispatch_t

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_quadmat_get() [3/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType & cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get ( size_t  i, size_t  j, dispatch_t< T, Sparse >  = nullptr  )

inlineprotected

access elements for sparse matrix

Template Parameters

T

Parameters

i
j
dispatch_t

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_quadmat_get() [4/4]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get ( size_t  i, size_t  j, dispatch_t< T, Sparse >  = nullptr  ) const

inlineprotected

access elements for sparse matrix

Template Parameters

T

Parameters

i
j
dispatch_t

Returns

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, and declare_BQM().

Here is the call graph for this function:

_set_label_to_idx()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx ( )

inlineprotected

set _label_to_idx from _idx_to_label

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat().

Here is the call graph for this function:

Here is the caller graph for this function:

_spin_to_binary() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary ( dispatch_t< T, Dense >  = nullptr )

inlineprotected

change internal variable from Ising to QUBO ones for dense matrix The following conversion is applied:

\[ \mathrm{offset} += \sum_{i<j} J_{ij} - \sum_{i}h_{i} \]

\[ Q_ii += -2\left(\sum_{j}J_{ji}+\sum_{j}J_{ij}\right) + 2h_{i} \]

\[ Q_{ij} = 4J_{ij} \]

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BINARY, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype().

Here is the call graph for this function:

Here is the caller graph for this function:

_spin_to_binary() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary ( dispatch_t< T, Sparse >  = nullptr )

inlineprotected

change internal variable from Ising to QUBO ones for sparse matrix The following conversion is applied:

\[ \mathrm{offset} += \sum_{i<j} J_{ij} - \sum_{i}h_{i} \]

\[ Q_ii += -2\left(\sum_{j}J_{ji}+\sum_{j}J_{ij}\right) + 2h_{i} \]

\[ Q_{ij} = 4J_{ij} \]

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BINARY, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype.

Here is the call graph for this function:

add_interaction()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interaction ( const IndexType &  u, const IndexType &  v, const FloatType &  bias  )

inline

Add an interaction and/or quadratic bias to a binary quadratic model.

Parameters

u
v
bias

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interactions_from(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_interactions_from(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables().

Here is the call graph for this function:

Here is the caller graph for this function:

add_interactions_from()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interactions_from ( const Quadratic< IndexType, FloatType > &  quadratic )

inline

Add interactions and/or quadratic biases to a binary quadratic model.

Parameters

quadratic

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_interaction(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::BinaryQuadraticModel().

Here is the call graph for this function:

Here is the caller graph for this function:

add_offset()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_offset ( const FloatType &  offset )

inline

Add specified value to the offset of a binary quadratic model.

Parameters

offset

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_interaction(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::flip_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_offset(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_offset().

Here is the caller graph for this function:

add_variable()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variable ( const IndexType &  v, const FloatType &  bias  )

inline

Add variable v and/or its bias to a binary quadratic model.

Parameters

v
bias

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_interaction(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variables_from(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_variables_from(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::fix_variable().

Here is the call graph for this function:

Here is the caller graph for this function:

add_variables_from()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variables_from ( const Linear< IndexType, FloatType > &  linear )

inline

Add variables and/or linear biases to a binary quadratic model.

Parameters

linear

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variable(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::BinaryQuadraticModel().

Here is the call graph for this function:

Here is the caller graph for this function:

change_vartype() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype ( const Vartype &  vartype )

inline

‍**

Create a binary quadratic model with the specified vartype. This function does not return any object.

Parameters

vartype

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BINARY, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::flip_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_ising(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::to_ising(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_qubo(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::to_qubo().

Here is the call graph for this function:

Here is the caller graph for this function:

change_vartype() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

BinaryQuadraticModel< IndexType, FloatType, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype ( const Vartype &  vartype, bool  inplace  )

inline

Create a binary quadratic model with the specified vartype.

This function generates and returns a new object.

Parameters

vartype
inplace	if set true, the current object is converted.

Returns

created object

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), and declare_BQM().

Here is the call graph for this function:

contains()

template<typename IndexType , typename FloatType , typename DataType >

bool cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::contains ( const IndexType &  v ) const

inline

Return true if the variable contains v.

Returns

Return true if the variable contains v.

Parameters

v

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, and declare_BQM().

Here is the call graph for this function:

empty()

template<typename IndexType , typename FloatType , typename DataType >

BinaryQuadraticModel< IndexType, FloatType, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::empty ( Vartype  vartype )

inline

Create an empty BinaryQuadraticModel.

Returns

empty object

References declare_BQM().

Here is the call graph for this function:

energies()

template<typename IndexType , typename FloatType , typename DataType >

std::vector< FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energies ( const std::vector< Sample< IndexType > > &  samples_like ) const

inline

Determine the energies of the given samples.

Parameters

samples_like

Returns

A vector including energies with respect to the samples.

References declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energy().

Here is the call graph for this function:

energy()

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energy ( const Sample< IndexType > &  sample ) const

inline

Determine the energy of the specified sample of a binary quadratic model.

Parameters

sample

Returns

An energy with respect to the sample.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energies(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::energies().

Here is the call graph for this function:

Here is the caller graph for this function:

fix_variable()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable ( const IndexType &  v, const int32_t &  value  )

inline

Fix the value of a variable and remove it from a binary quadratic model.

Parameters

v
value

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_variable(), declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interactions_from(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variable().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variables(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::fix_variables().

Here is the call graph for this function:

Here is the caller graph for this function:

fix_variables()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variables ( const std::vector< std::pair< IndexType, int32_t > > &  fixed )

inline

Fix the value of the variables and remove it from a binary quadratic model.

Parameters

fixed

References declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable().

Here is the call graph for this function:

flip_variable()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::flip_variable ( const IndexType &  v )

inline

Flip variable v in a binary quadratic model.

Parameters

v

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BINARY, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Here is the call graph for this function:

from_ising()

template<typename IndexType , typename FloatType , typename DataType >

static BinaryQuadraticModel< IndexType, FloatType, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::from_ising ( const Linear< IndexType, FloatType > &  linear, const Quadratic< IndexType, FloatType > &  quadratic, FloatType  offset = 0.0  )

inlinestatic

Create a binary quadratic model from an Ising problem.

Parameters

linear
quadratic
offset

Returns

Binary quadratic model with vartype set to .Vartype.SPIN.

References declare_BQM(), and cimod::SPIN.

Here is the call graph for this function:

from_qubo()

template<typename IndexType , typename FloatType , typename DataType >

static BinaryQuadraticModel< IndexType, FloatType, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::from_qubo ( const Quadratic< IndexType, FloatType > &  Q, FloatType  offset = 0.0  )

inlinestatic

Create a binary quadratic model from a QUBO model.

Parameters

Q
offset

Returns

Binary quadratic model with vartype set to .Vartype.BINARY.

References cimod::BINARY, and declare_BQM().

Here is the call graph for this function:

from_serializable() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename IndexType_serial = IndexType, typename FloatType_serial = FloatType, typename T = DataType>

static BinaryQuadraticModel< IndexType_serial, FloatType_serial, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::from_serializable ( const json &  input, dispatch_t< T, Dense >  = nullptr  )

inlinestatic

Create a BinaryQuadraticModel instance from a serializable object.

Template Parameters

IndexType_serial
FloatType_serial

Parameters

input

Returns

BinaryQuadraticModel<IndexType_serial, FloatType_serial>

References cimod::BINARY, declare_BQM(), and cimod::SPIN.

Here is the call graph for this function:

from_serializable() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename IndexType_serial = IndexType, typename FloatType_serial = FloatType, typename T = DataType>

static BinaryQuadraticModel< IndexType_serial, FloatType_serial, DataType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::from_serializable ( const json &  input, dispatch_t< T, Sparse >  = nullptr  )

inlinestatic

Create a BinaryQuadraticModel instance from a serializable object.

Template Parameters

IndexType_serial
FloatType_serial

Parameters

input

Returns

BinaryQuadraticModel<IndexType_serial, FloatType_serial>

References cimod::BINARY, declare_BQM(), and cimod::SPIN.

Here is the call graph for this function:

get_linear() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

Linear< IndexType, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_linear ( ) const

inline

Get linear object.

Returns

A linear object

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_linear().

Here is the call graph for this function:

get_linear() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_linear ( IndexType  label_i ) const

inline

Get the element of linear object.

Returns

A linear bias.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and declare_BQM().

Here is the call graph for this function:

get_num_variables()

template<typename IndexType , typename FloatType , typename DataType >

size_t cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables ( ) const

inline

get the number of variables

Returns

The number of variables.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::interaction_matrix(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::length(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::length(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable().

Here is the caller graph for this function:

get_offset()

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_offset ( ) const

inline

Get the offset.

Returns

An offset.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset.

get_quadratic() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

Quadratic< IndexType, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_quadratic ( ) const

inline

Get uadratic object.

Returns

A quadratic object.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable().

Here is the call graph for this function:

Here is the caller graph for this function:

get_quadratic() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_quadratic ( IndexType  label_i, IndexType  label_j  ) const

inline

Get the element of quadratic object.

Returns

A quadratic bias.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and declare_BQM().

Here is the call graph for this function:

get_variables()

template<typename IndexType , typename FloatType , typename DataType >

const std::vector< IndexType > & cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_variables ( ) const

inline

Get variables.

Returns

variables

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::interaction_matrix(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable().

Here is the caller graph for this function:

get_vartype()

template<typename IndexType , typename FloatType , typename DataType >

Vartype cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_vartype ( ) const

inline

Get the vartype object.

Returns

Type of the model.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_interaction(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_variable().

Here is the caller graph for this function:

interaction_matrix()

template<typename IndexType , typename FloatType , typename DataType >

Matrix cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::interaction_matrix ( ) const

inline

generate (Dense or Sparse) interaction matrix with given list of indices The generated matrix will be the following triangular matrix:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Parameters

indices

Returns

corresponding interaction matrix (Eigen)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat.

length()

template<typename IndexType , typename FloatType , typename DataType >

size_t cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::length ( ) const

inline

Return the number of variables.

Deprecated:

use get_num_variables instead.

Returns

The number of variables.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables().

Here is the call graph for this function:

normalize()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::normalize ( const std::pair< FloatType, FloatType > &  bias_range = { 1.0, 1.0 }, const bool  use_quadratic_range = false, const std::pair< FloatType, FloatType > &  quadratic_range = { 1.0, 1.0 }, const std::vector< IndexType > &  ignored_variables = {}, const std::vector< std::pair< IndexType, IndexType > > &  ignored_interactions = {}, const bool  ignored_offset = false  )

inline

Normalizes the biases of the binary quadratic model such that they fall in the provided range(s), and adjusts the offset appropriately.

Parameters

bias_range
use_quadratic_range
quadratic_range
ignored_variables
ignored_interactions
ignored_offset

remove_interaction()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interaction ( const IndexType &  u, const IndexType &  v  )

inline

Remove interaction of variables u, v from a binary quadratic model.

Parameters

u
v

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interactions_from(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_interactions_from().

Here is the call graph for this function:

Here is the caller graph for this function:

remove_interactions_from()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interactions_from ( const std::vector< std::pair< IndexType, IndexType > > &  interactions )

inline

Remove all specified interactions from the binary quadratic model.

Parameters

interactions

References declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_interaction().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::fix_variable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_variable().

Here is the call graph for this function:

Here is the caller graph for this function:

remove_offset()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_offset ( )

inline

Set the binary quadratic model's offset to zero.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_offset(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset.

Here is the call graph for this function:

remove_variable()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variable ( const IndexType &  v )

inline

Remove variable v and all its interactions from a binary quadratic model.

Parameters

v

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label(), and declare_BQM().

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::fix_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_interaction(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variables_from(), and cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_variables_from().

Here is the call graph for this function:

Here is the caller graph for this function:

remove_variables_from()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variables_from ( const std::vector< IndexType > &  variables )

inline

Remove specified variables and all of their interactions from a binary quadratic model.

Parameters

variables

References declare_BQM(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_variable().

Here is the call graph for this function:

scale()

template<typename IndexType , typename FloatType , typename DataType >

void cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::scale ( const FloatType &  scalar, const std::vector< IndexType > &  ignored_variables = {}, const std::vector< std::pair< IndexType, IndexType > > &  ignored_interactions = {}, const bool  ignored_offset = false  )

inline

Multiply by the specified scalar all the biases and offset of a binary quadratic model.

Parameters

scalar
ignored_variables
ignored_interactions
ignored_offset

to_ising()

template<typename IndexType , typename FloatType , typename DataType >

std::tuple< Linear< IndexType, FloatType >, Quadratic< IndexType, FloatType >, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_ising ( )

inline

Convert a binary quadratic model to Ising format.

Returns

A tuple including a linear bias, a quadratic bias and an offset.

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), declare_BQM(), and cimod::SPIN.

Here is the call graph for this function:

to_qubo()

template<typename IndexType , typename FloatType , typename DataType >

std::tuple< Quadratic< IndexType, FloatType >, FloatType > cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_qubo ( )

inline

Convert a binary quadratic model to QUBO format.

Returns

A tuple including a quadratic bias and an offset.

References cimod::BINARY, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), and declare_BQM().

Here is the call graph for this function:

to_serializable() [1/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

json cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable ( dispatch_t< T, Dense >  = nullptr ) const

inline

Convert the binary quadratic model to a dense-version serializable object.

Returns

An object that can be serialized (nlohmann::json)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BINARY, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Here is the call graph for this function:

to_serializable() [2/2]

template<typename IndexType , typename FloatType , typename DataType >

template<typename T = DataType>

json cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable ( dispatch_t< T, Sparse >  = nullptr ) const

inline

Convert the binary quadratic model to a serializable object.

Returns

An object that can be serialized (nlohmann::json)

References cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat, cimod::BINARY, declare_BQM(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset, cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype, and cimod::SPIN.

Here is the call graph for this function:

Member Data Documentation

_idx_to_label

template<typename IndexType , typename FloatType , typename DataType >

std::vector<IndexType> cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_idx_to_label

protected

vector for converting index to label the list is asssumed to be sorted

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_num_variables(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_variables().

_label_to_idx

template<typename IndexType , typename FloatType , typename DataType >

std::unordered_map<IndexType, size_t> cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_label_to_idx

protected

dict for converting label to index

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_new_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_set_label_to_idx(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::contains(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energy(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::flip_variable().

_quadmat

template<typename IndexType , typename FloatType , typename DataType >

Matrix cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat

protected

quadratic dense-type matrix The stored matrix has the following triangular form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_add_triangular_elements(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_delete_label_from_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_generate_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_initialize_quadmat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_insert_label_into_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_mat(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_max_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_linear(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_min_quadratic(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_quadmat_get(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energy(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::flip_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::interaction_matrix(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable().

m_offset

template<typename IndexType , typename FloatType , typename DataType >

FloatType cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_offset

protected

The energy offset associated with the model.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::add_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::energy(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::energy(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::get_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::remove_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::remove_offset(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::to_serializable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable().

m_vartype

template<typename IndexType , typename FloatType , typename DataType >

Vartype cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::m_vartype = Vartype::NONE

protected

The model's type.

Referenced by cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_binary_to_spin(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::_spin_to_binary(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_interaction(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::add_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::change_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::contract_variables(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::energy(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::flip_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::flip_variable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::get_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::get_vartype(), cimod::BinaryQuadraticModel< IndexType, FloatType, Dict >::to_serializable(), cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable(), and cimod::BinaryQuadraticModel< IndexType, FloatType, DataType >::to_serializable().

---

The documentation for this class was generated from the following file:

• binary_quadratic_model.hpp
