openjij::graph::CSRSparse< FloatType > Class Template Reference

CSRSparse graph: just store CSR Sparse Matrix (Eigen::Sparse) The Hamiltonian is like. More...

#include <csr_sparse.hpp>

Inheritance diagram for openjij::graph::CSRSparse< FloatType >:

Collaboration diagram for openjij::graph::CSRSparse< FloatType >:

Public Types
using	Interactions = Eigen::SparseMatrix< FloatType, Eigen::RowMajor >
	interaction type
using	value_type = FloatType
	float type

Public Member Functions
	CSRSparse (const Interactions &interaction)
	CSRSparse constructor.
	CSRSparse (const CSRSparse< FloatType > &)=default
	CSRSparse copy constructor.
	CSRSparse (CSRSparse< FloatType > &&)=default
	CSRSparse move constructor.
FloatType	calc_energy (const Spins &spins) const
	calculate total energy
FloatType	calc_energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const
FloatType	energy (const Spins &spins) const
	calculate total energy
FloatType	energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const
const Interactions	get_interactions () const
	get interactions (Eigen Matrix)
Public Member Functions inherited from openjij::graph::Graph
	Graph (std::size_t num_spins)
	Graph constructor.
template<typename RandomNumberEngine >
const Spins	gen_spin (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.
template<typename RandomNumberEngine >
const Binaries	gen_binary (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.
std::size_t	get_num_spins () const noexcept
	get number of spins
std::size_t	size () const noexcept
	get number of spins

Private Attributes
Interactions	_J
	interactions (the number of intereactions is num_spins*(num_spins+1)/2).

Detailed Description

template<typename FloatType>
class openjij::graph::CSRSparse< FloatType >

CSRSparse graph: just store CSR Sparse Matrix (Eigen::Sparse) The Hamiltonian is like.

\[ H = \sum_{i<j}J_{ij} \sigma_i \sigma_j + \sum_{i}h_{i} \sigma_i \]

Template Parameters

FloatType

floating-point type

Member Typedef Documentation

Interactions

template<typename FloatType >

using openjij::graph::CSRSparse< FloatType >::Interactions = Eigen::SparseMatrix<FloatType, Eigen::RowMajor>

interaction type

value_type

template<typename FloatType >

using openjij::graph::CSRSparse< FloatType >::value_type = FloatType

float type

Constructor & Destructor Documentation

CSRSparse() [1/3]

template<typename FloatType >

openjij::graph::CSRSparse< FloatType >::CSRSparse ( const Interactions &  interaction )

inlineexplicit

CSRSparse constructor.

The input matrix must have the form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Parameters

interaction

input matrix

References openjij::graph::CSRSparse< FloatType >::_J, and openjij::graph::json_parse().

Here is the call graph for this function:

CSRSparse() [2/3]

template<typename FloatType >

openjij::graph::CSRSparse< FloatType >::CSRSparse ( const CSRSparse< FloatType > &  )

default

CSRSparse copy constructor.

CSRSparse() [3/3]

template<typename FloatType >

openjij::graph::CSRSparse< FloatType >::CSRSparse ( CSRSparse< FloatType > &&  )

default

CSRSparse move constructor.

Member Function Documentation

calc_energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::CSRSparse< FloatType >::calc_energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &  spins ) const

inline

References openjij::graph::CSRSparse< FloatType >::energy(), and openjij::graph::json_parse().

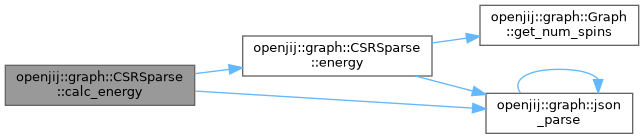

Here is the call graph for this function:

calc_energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::CSRSparse< FloatType >::calc_energy ( const Spins &  spins ) const

inline

calculate total energy

Parameters

spins

Deprecated:

use energy(spins)

Returns

corresponding energy

References openjij::graph::CSRSparse< FloatType >::energy().

Referenced by openjij::declare_CSRSparse().

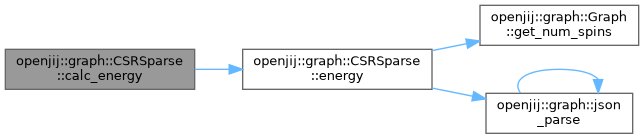

Here is the call graph for this function:

Here is the caller graph for this function:

energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::CSRSparse< FloatType >::energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &  spins ) const

inline

References openjij::graph::CSRSparse< FloatType >::energy(), openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

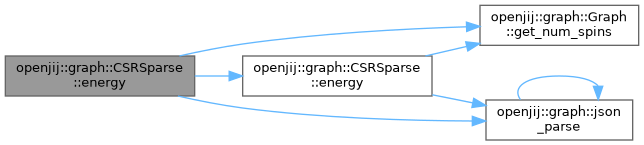

Here is the call graph for this function:

energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::CSRSparse< FloatType >::energy ( const Spins &  spins ) const

inline

calculate total energy

Parameters

spins

Returns

corresponding energy

References openjij::graph::CSRSparse< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

Referenced by openjij::graph::CSRSparse< FloatType >::calc_energy(), openjij::graph::CSRSparse< FloatType >::calc_energy(), and openjij::graph::CSRSparse< FloatType >::energy().

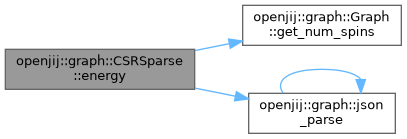

Here is the call graph for this function:

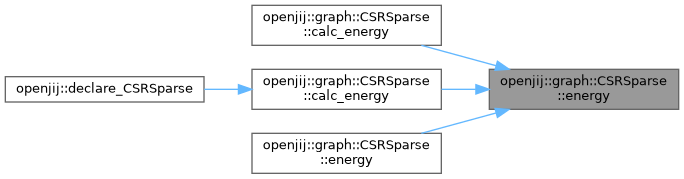

Here is the caller graph for this function:

get_interactions()

template<typename FloatType >

const Interactions openjij::graph::CSRSparse< FloatType >::get_interactions ( ) const

inline

get interactions (Eigen Matrix)

The returned matrix has the following symmetric form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ J_{0,1} & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ J_{0,N-1} & J_{N-1,1} & \cdots & J_{N-1,N-1} & h_{N-1}\\ h_{0} & h_{1} & \cdots & h_{N-1} & 1 \\ \end{pmatrix} \]

Returns

Eigen Matrix

References openjij::graph::json_parse().

Here is the call graph for this function:

Member Data Documentation

_J

template<typename FloatType >

Interactions openjij::graph::CSRSparse< FloatType >::_J

private

interactions (the number of intereactions is num_spins*(num_spins+1)/2).

The stored matrix has the following triangular form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

Referenced by openjij::graph::CSRSparse< FloatType >::CSRSparse(), and openjij::graph::CSRSparse< FloatType >::energy().

---

The documentation for this class was generated from the following file:

• csr_sparse.hpp
