Sparse graph: two-body intereactions with O(1) connectivity The Hamiltonian is like. More...

#include <sparse.hpp>

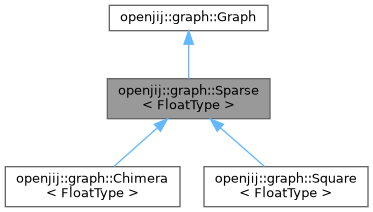

Inheritance diagram for openjij::graph::Sparse< FloatType >:

[legend]

Collaboration diagram for openjij::graph::Sparse< FloatType >:

Public Types
using	Interactions = std::unordered_map< std::pair< Index, Index >, FloatType, utility::PairHash >
	interaction type

using	value_type = FloatType
	float type

Public Member Functions
	Sparse (std::size_t num_spins, std::size_t num_edges)
	Sparse constructor.

	Sparse (std::size_t num_spins)
	Sparse delegate constructor.

	Sparse (const json &j, std::size_t num_edges)
	Sparse constructor (from nlohmann::json)

	Sparse (const json &j)
	Sparse constructor (from nlohmann::json)

	Sparse (const Sparse< FloatType > &)=default
	Sparse copy constructor.

	Sparse (Sparse< FloatType > &&)=default
	Sparse move constructor.

const Nodes &	adj_nodes (Index ind) const
	list of adjacent nodes

std::size_t	get_num_edges () const
	get number of edges

FloatType	calc_energy (const Spins &spins) const
	calculate total energy

FloatType	calc_energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const

FloatType	energy (const Spins &spins) const
	calculate total energy

FloatType	energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const

FloatType &	J (Index i, Index j)
	access J_{ij}

const FloatType &	J (Index i, Index j) const
	access J_{ij}

FloatType &	h (Index i)
	access h_{i} (local field)

const FloatType &	h (Index i) const
	access h_{i} (local field)

Public Member Functions inherited from openjij::graph::Graph
	Graph (std::size_t num_spins)
	Graph constructor.

template<typename RandomNumberEngine >
const Spins	gen_spin (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.

template<typename RandomNumberEngine >
const Binaries	gen_binary (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.

std::size_t	get_num_spins () const noexcept
	get number of spins

std::size_t	size () const noexcept
	get number of spins

Private Member Functions
bool	set_adj_node (Index from, Index to)
	add adjacent node from "from" Index to "to" Index

Private Attributes
Interactions	_J
	interactions (the number of intereactions is num_spins*(num_spins+1)/2)

std::size_t	_num_edges
	the uppder limit of the number of edges per site

std::vector< Nodes >	_list_adj_nodes
	the list of the indices of adjacent nodes

Detailed Description

template<typename FloatType>
class openjij::graph::Sparse< FloatType >

Sparse graph: two-body intereactions with O(1) connectivity The Hamiltonian is like.

\[ H = \sum_{i<j}J_{ij} \sigma_i \sigma_j + \sum_{i}h_{i} \sigma_i \]

Template Parameters

FloatType floating-point type

Member Typedef Documentation

◆ Interactions

template<typename FloatType >

using openjij::graph::Sparse< FloatType >::Interactions = std::unordered_map<std::pair<Index, Index>, FloatType, utility::PairHash>

interaction type

◆ value_type

template<typename FloatType >

using openjij::graph::Sparse< FloatType >::value_type = FloatType

float type

Constructor & Destructor Documentation

◆ Sparse() [1/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse	(	std::size_t	num_spins,
		std::size_t	num_edges
	)

inline

Sparse constructor.

Parameters

num_spins	number of spins
num_edges	number of edges

◆ Sparse() [2/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse ( std::size_t num_spins )

inlineexplicit

Sparse delegate constructor.

Parameters

num_spins number of spins

◆ Sparse() [3/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse	(	const json &	j,
		std::size_t	num_edges
	)

inline

Sparse constructor (from nlohmann::json)

Parameters

j	JSON object
num_edges	number of edges

References openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::J(), and openjij::graph::json_parse().

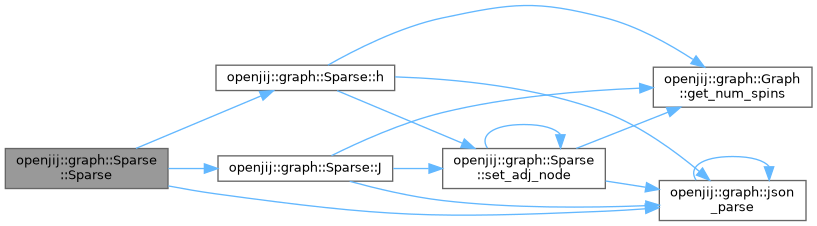

Here is the call graph for this function:

◆ Sparse() [4/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse ( const json & j )

inline

Sparse constructor (from nlohmann::json)

Parameters

j	JSON object

◆ Sparse() [5/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse ( const Sparse< FloatType > & )

default

Sparse copy constructor.

◆ Sparse() [6/6]

template<typename FloatType >

openjij::graph::Sparse< FloatType >::Sparse ( Sparse< FloatType > && )

default

Sparse move constructor.

Member Function Documentation

◆ adj_nodes()

template<typename FloatType >

const Nodes & openjij::graph::Sparse< FloatType >::adj_nodes ( Index ind ) const

inline

list of adjacent nodes

Parameters

ind	Node index

Returns: corresponding list of adjacent nodes

References openjij::graph::Sparse< FloatType >::_list_adj_nodes, and openjij::graph::json_parse().

Referenced by openjij::utility::gen_matrix_from_graph().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calc_energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::Sparse< FloatType >::calc_energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > & spins ) const

inline

References openjij::graph::Sparse< FloatType >::energy(), and openjij::graph::json_parse().

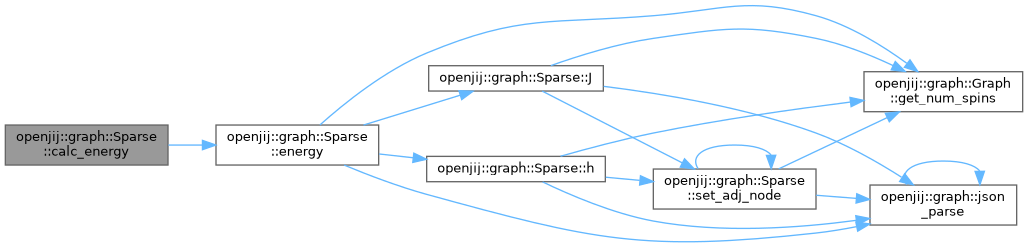

Here is the call graph for this function:

◆ calc_energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::Sparse< FloatType >::calc_energy ( const Spins & spins ) const

inline

calculate total energy

Parameters

spins

Deprecated:: use energy(spins)

Returns: corresponding energy

References openjij::graph::Sparse< FloatType >::energy().

Referenced by openjij::declare_Sparse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::Sparse< FloatType >::energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > & spins ) const

inline

References openjij::graph::Sparse< FloatType >::energy(), openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

Here is the call graph for this function:

◆ energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::Sparse< FloatType >::energy ( const Spins & spins ) const

inline

calculate total energy

Parameters

spins

Returns: corresponding energy

References openjij::graph::Graph::get_num_spins(), openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::J(), and openjij::graph::json_parse().

Referenced by openjij::graph::Sparse< FloatType >::calc_energy(), openjij::graph::Sparse< FloatType >::calc_energy(), and openjij::graph::Sparse< FloatType >::energy().

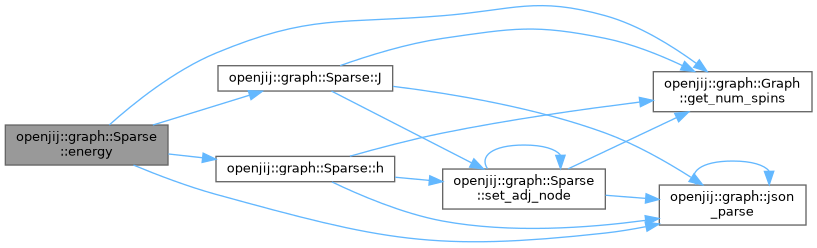

Here is the call graph for this function:

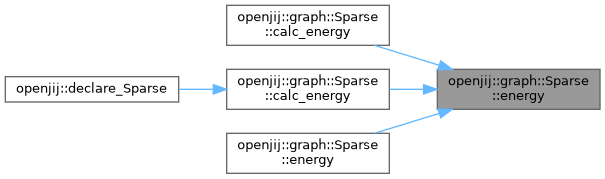

Here is the caller graph for this function:

◆ get_num_edges()

template<typename FloatType >

std::size_t openjij::graph::Sparse< FloatType >::get_num_edges ( ) const

inline

get number of edges

Returns: number of edges

References openjij::graph::Sparse< FloatType >::_num_edges.

◆ h() [1/2]

template<typename FloatType >

FloatType & openjij::graph::Sparse< FloatType >::h ( Index i )

inline

access h_{i} (local field)

Parameters

i Index i

Returns: h_{i}

References openjij::graph::Sparse< FloatType >::_J, openjij::graph::Graph::get_num_spins(), openjij::graph::json_parse(), and openjij::graph::Sparse< FloatType >::set_adj_node().

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::declare_Sparse(), openjij::graph::Sparse< FloatType >::energy(), openjij::utility::gen_matrix_from_graph(), openjij::graph::Square< FloatType >::h(), openjij::graph::Square< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Sparse< FloatType >::Sparse(), and openjij::graph::Square< FloatType >::Square().

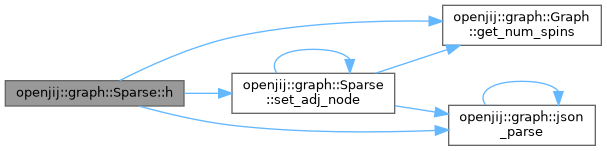

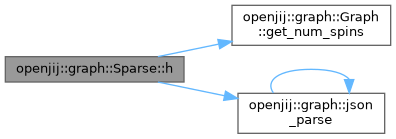

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h() [2/2]

template<typename FloatType >

const FloatType & openjij::graph::Sparse< FloatType >::h ( Index i ) const

inline

access h_{i} (local field)

Parameters

i Index i

Returns: h_{i}

References openjij::graph::Sparse< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

Here is the call graph for this function:

◆ J() [1/2]

template<typename FloatType >

FloatType & openjij::graph::Sparse< FloatType >::J	(	Index	i,
		Index	j
	)

inline

access J_{ij}

Parameters

i	Index i
j	Index j

Returns: J_{ij}

References openjij::graph::Sparse< FloatType >::_J, openjij::graph::Graph::get_num_spins(), openjij::graph::json_parse(), and openjij::graph::Sparse< FloatType >::set_adj_node().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ J() [2/2]

template<typename FloatType >

const FloatType & openjij::graph::Sparse< FloatType >::J	(	Index	i,
		Index	j
	)		const

inline

access J_{ij}

Parameters

i	Index i
j	Index j

Returns: J_{ij}

References openjij::graph::Sparse< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

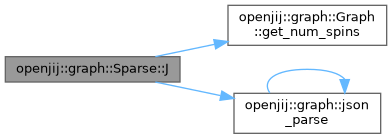

Here is the call graph for this function:

◆ set_adj_node()

template<typename FloatType >

bool openjij::graph::Sparse< FloatType >::set_adj_node	(	Index	from,
		Index	to
	)

inlineprivate

add adjacent node from "from" Index to "to" Index

Parameters

from	"from" Index
to	"to" Index

Returns: true if nodes is successfully added, false if this function failed.

References openjij::graph::Sparse< FloatType >::_list_adj_nodes, openjij::graph::Sparse< FloatType >::_num_edges, openjij::graph::Graph::get_num_spins(), openjij::graph::json_parse(), and openjij::graph::Sparse< FloatType >::set_adj_node().

Referenced by openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::J(), and openjij::graph::Sparse< FloatType >::set_adj_node().

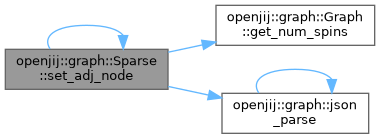

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _J

template<typename FloatType >

Interactions openjij::graph::Sparse< FloatType >::_J

private

interactions (the number of intereactions is num_spins*(num_spins+1)/2)

Referenced by openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::J(), and openjij::graph::Sparse< FloatType >::J().

◆ _list_adj_nodes

template<typename FloatType >

std::vector<Nodes> openjij::graph::Sparse< FloatType >::_list_adj_nodes

private

the list of the indices of adjacent nodes

Referenced by openjij::graph::Sparse< FloatType >::adj_nodes(), and openjij::graph::Sparse< FloatType >::set_adj_node().

◆ _num_edges

template<typename FloatType >

std::size_t openjij::graph::Sparse< FloatType >::_num_edges

private

the uppder limit of the number of edges per site

Referenced by openjij::graph::Sparse< FloatType >::get_num_edges(), and openjij::graph::Sparse< FloatType >::set_adj_node().

The documentation for this class was generated from the following file:

sparse.hpp
