chimera lattice graph More...

#include <chimera.hpp>

Inheritance diagram for openjij::graph::Chimera< FloatType >:

[legend]

Collaboration diagram for openjij::graph::Chimera< FloatType >:

[legend]

Public Member Functions
Index	to_ind (std::int64_t r, std::int64_t c, std::int64_t i) const
	convert from (row x column x in-chimera) index to global index

ChimeraIndex	to_rci (Index ind) const
	convert from global index to (row x column x in-chimera) index

	Chimera (std::size_t num_row, std::size_t num_column, FloatType init_val=0)
	chimera lattice graph constructor

	Chimera (const json &j, std::size_t num_row, std::size_t num_column, FloatType init_val=0)
	Square constructor (from nlohmann::json)

	Chimera (const Chimera< FloatType > &)=default
	chimera lattice graph copy constructor

	Chimera (Chimera< FloatType > &&)=default
	chimera lattice graph move constructor

std::size_t	get_num_row () const
	get number of rows

std::size_t	get_num_column () const
	get number of columns

std::size_t	get_num_in_chimera () const
	get number of spins in each chimera unit

FloatType &	J (std::size_t r, std::size_t c, std::size_t i, ChimeraDir dir)
	access J(row, colum, in-chimera, direction)

const FloatType &	J (std::size_t r, std::size_t c, std::size_t i, ChimeraDir dir) const
	access J(row, colum, in-chimera, direction)

FloatType &	h (std::size_t r, std::size_t c, std::size_t i)
	access h(row, colum, in-chimera) (local field)

const FloatType &	h (std::size_t r, std::size_t c, std::size_t i) const
	access h(row, colum, in-chimera) (local field)

Spin &	spin (Spins &spins, std::size_t r, std::size_t c, std::size_t i) const
	derive spin value at the index (row x column)

const Spin &	spin (const Spins &spins, std::size_t r, std::size_t c, std::size_t i) const
	derive spin value at the index (row x column)

Public Member Functions inherited from openjij::graph::Sparse< FloatType >
	Sparse (std::size_t num_spins, std::size_t num_edges)
	Sparse constructor.

	Sparse (std::size_t num_spins)
	Sparse delegate constructor.

	Sparse (const json &j, std::size_t num_edges)
	Sparse constructor (from nlohmann::json)

	Sparse (const json &j)
	Sparse constructor (from nlohmann::json)

	Sparse (const Sparse< FloatType > &)=default
	Sparse copy constructor.

	Sparse (Sparse< FloatType > &&)=default
	Sparse move constructor.

const Nodes &	adj_nodes (Index ind) const
	list of adjacent nodes

std::size_t	get_num_edges () const
	get number of edges

FloatType	calc_energy (const Spins &spins) const
	calculate total energy

FloatType	calc_energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const

FloatType	energy (const Spins &spins) const
	calculate total energy

FloatType	energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const

FloatType &	J (Index i, Index j)
	access J_{ij}

const FloatType &	J (Index i, Index j) const
	access J_{ij}

FloatType &	h (Index i)
	access h_{i} (local field)

const FloatType &	h (Index i) const
	access h_{i} (local field)

Public Member Functions inherited from openjij::graph::Graph
	Graph (std::size_t num_spins)
	Graph constructor.

template<typename RandomNumberEngine >
const Spins	gen_spin (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.

template<typename RandomNumberEngine >
const Binaries	gen_binary (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.

std::size_t	get_num_spins () const noexcept
	get number of spins

std::size_t	size () const noexcept
	get number of spins

Private Member Functions
std::size_t	mod_r (std::int64_t a) const
	mod function (a mod num_row)

std::size_t	mod_c (std::int64_t a) const
	mod function (a mod num_column)

void	_checkpair (Index idx1, Index idx2) const
	check if the pair has a valid connection

Private Attributes
FloatType	_init_val
	initial value to be set to inreactions

std::size_t	_num_row
	number of rows

std::size_t	_num_column
	number of columns

Static Private Attributes
static constexpr std::size_t	_num_in_chimera = 8
	number of spins in each chimera units (8)

Additional Inherited Members
Public Types inherited from openjij::graph::Sparse< FloatType >
using	Interactions = std::unordered_map< std::pair< Index, Index >, FloatType, utility::PairHash >
	interaction type

using	value_type = FloatType
	float type

Detailed Description

template<typename FloatType = double>
class openjij::graph::Chimera< FloatType >

chimera lattice graph

Template Parameters

FloatType floating-point type (default: double)

Constructor & Destructor Documentation

◆ Chimera() [1/4]

template<typename FloatType = double>

openjij::graph::Chimera< FloatType >::Chimera	(	std::size_t	num_row,
		std::size_t	num_column,
		FloatType	init_val = `0`
	)

inline

chimera lattice graph constructor

Parameters

num_row	number of rows
num_column	number of columns
init_val	initial value set to interaction (default: 0)

References openjij::graph::Chimera< FloatType >::_init_val, openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::Sparse< FloatType >::J(), and openjij::graph::Chimera< FloatType >::to_ind().

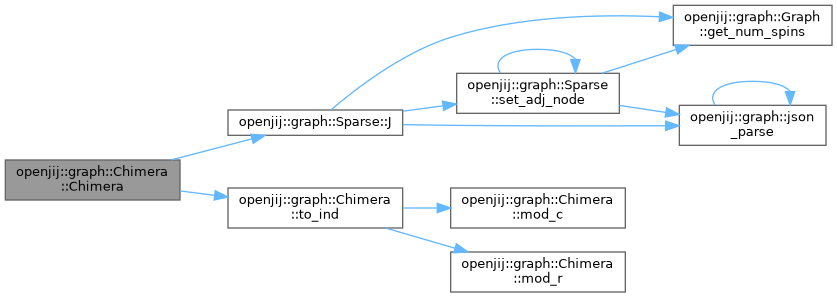

Here is the call graph for this function:

◆ Chimera() [2/4]

template<typename FloatType = double>

openjij::graph::Chimera< FloatType >::Chimera	(	const json &	j,
		std::size_t	num_row,
		std::size_t	num_column,
		FloatType	init_val = `0`
	)

inline

Square constructor (from nlohmann::json)

Parameters

j	JSON object
num_row	number of rows
num_column	number of columns
init_val	initial value set to interaction (default: 0)

References openjij::graph::Chimera< FloatType >::_checkpair(), openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Sparse< FloatType >::h(), openjij::graph::Sparse< FloatType >::J(), and openjij::graph::json_parse().

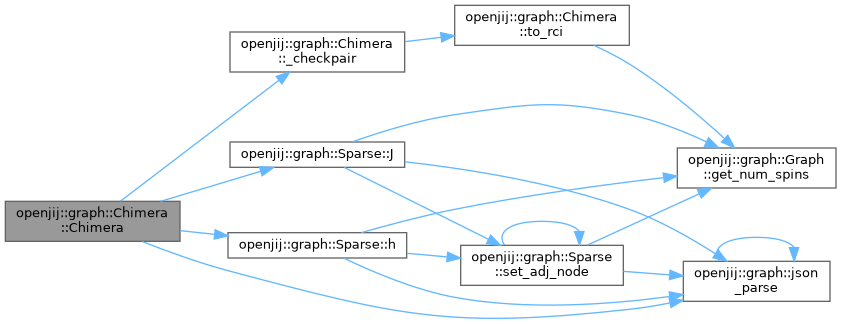

Here is the call graph for this function:

◆ Chimera() [3/4]

template<typename FloatType = double>

openjij::graph::Chimera< FloatType >::Chimera ( const Chimera< FloatType > & )

default

chimera lattice graph copy constructor

◆ Chimera() [4/4]

template<typename FloatType = double>

openjij::graph::Chimera< FloatType >::Chimera ( Chimera< FloatType > && )

default

chimera lattice graph move constructor

Member Function Documentation

◆ _checkpair()

template<typename FloatType = double>

void openjij::graph::Chimera< FloatType >::_checkpair	(	Index	idx1,
		Index	idx2
	)		const

inlineprivate

check if the pair has a valid connection

Parameters

idx1	index1
idx2	index2

References openjij::graph::Chimera< FloatType >::to_rci().

Referenced by openjij::graph::Chimera< FloatType >::Chimera().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_num_column()

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::get_num_column ( ) const

inline

get number of columns

Returns: number of columns

References openjij::graph::Chimera< FloatType >::_num_column.

◆ get_num_in_chimera()

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::get_num_in_chimera ( ) const

inline

get number of spins in each chimera unit

Returns: number of spins in each chimera unit

References openjij::graph::Chimera< FloatType >::_num_in_chimera.

◆ get_num_row()

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::get_num_row ( ) const

inline

get number of rows

Returns: number of rows

References openjij::graph::Chimera< FloatType >::_num_row.

◆ h() [1/2]

template<typename FloatType = double>

FloatType & openjij::graph::Chimera< FloatType >::h	(	std::size_t	r,
		std::size_t	c,
		std::size_t	i
	)

inline

access h(row, colum, in-chimera) (local field)

Parameters

r	row index
c	column index
i	in-chimera index

Returns: corresponding interaction value

References openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::Sparse< FloatType >::h(), openjij::graph::json_parse(), and openjij::graph::Chimera< FloatType >::to_ind().

Referenced by openjij::declare_Chimera().

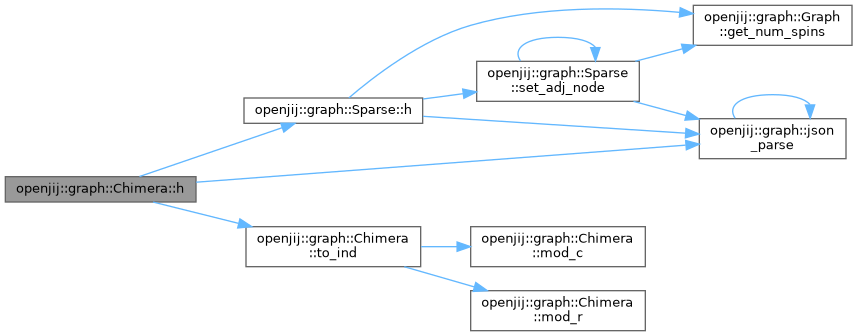

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h() [2/2]

template<typename FloatType = double>

const FloatType & openjij::graph::Chimera< FloatType >::h	(	std::size_t	r,
		std::size_t	c,
		std::size_t	i
	)		const

inline

access h(row, colum, in-chimera) (local field)

Parameters

r	row index
c	column index
i	in-chimera index

Returns: corresponding interaction value

References openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::Sparse< FloatType >::h(), openjij::graph::json_parse(), and openjij::graph::Chimera< FloatType >::to_ind().

Here is the call graph for this function:

◆ J() [1/2]

template<typename FloatType = double>

FloatType & openjij::graph::Chimera< FloatType >::J	(	std::size_t	r,
		std::size_t	c,
		std::size_t	i,
		ChimeraDir	dir
	)

inline

access J(row, colum, in-chimera, direction)

Parameters

r	row index
c	column index
i	in-chimera index
dir	chimera direction

Returns: corresponding interaction value

References openjij::graph::Chimera< FloatType >::_init_val, openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::IN_0or4, openjij::graph::IN_1or5, openjij::graph::IN_2or6, openjij::graph::IN_3or7, openjij::graph::Sparse< FloatType >::J(), openjij::graph::json_parse(), openjij::graph::MINUS_C, openjij::graph::MINUS_R, openjij::graph::PLUS_C, openjij::graph::PLUS_R, and openjij::graph::Chimera< FloatType >::to_ind().

Referenced by openjij::declare_Chimera().

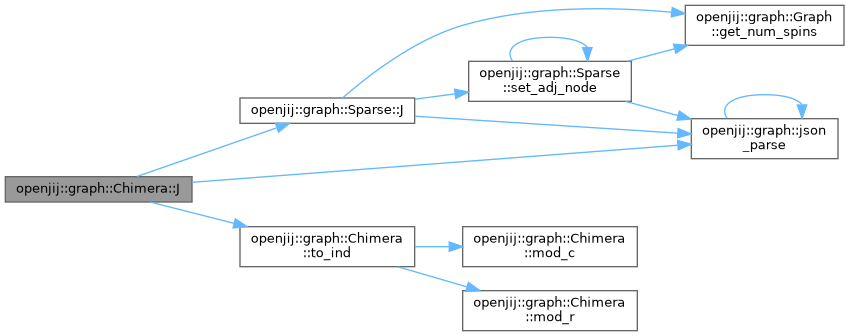

Here is the call graph for this function:

Here is the caller graph for this function:

◆ J() [2/2]

template<typename FloatType = double>

const FloatType & openjij::graph::Chimera< FloatType >::J	(	std::size_t	r,
		std::size_t	c,
		std::size_t	i,
		ChimeraDir	dir
	)		const

inline

access J(row, colum, in-chimera, direction)

Parameters

r	row index
c	column index
i	in-chimera index
dir	chimera direction

Returns: corresponding interaction value

References openjij::graph::Chimera< FloatType >::_init_val, openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::IN_0or4, openjij::graph::IN_1or5, openjij::graph::IN_2or6, openjij::graph::IN_3or7, openjij::graph::Sparse< FloatType >::J(), openjij::graph::json_parse(), openjij::graph::MINUS_C, openjij::graph::MINUS_R, openjij::graph::PLUS_C, openjij::graph::PLUS_R, and openjij::graph::Chimera< FloatType >::to_ind().

Here is the call graph for this function:

◆ mod_c()

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::mod_c ( std::int64_t a ) const

inlineprivate

mod function (a mod num_column)

Parameters

a	parameter ([-1:num_column])

Returns: (a mod num_column)

References openjij::graph::Chimera< FloatType >::_num_column.

Referenced by openjij::graph::Chimera< FloatType >::to_ind().

Here is the caller graph for this function:

◆ mod_r()

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::mod_r ( std::int64_t a ) const

inlineprivate

mod function (a mod num_row)

Parameters

a	parameter ([-1:num_row])

Returns: (a mod num_row)

References openjij::graph::Chimera< FloatType >::_num_row.

Referenced by openjij::graph::Chimera< FloatType >::to_ind().

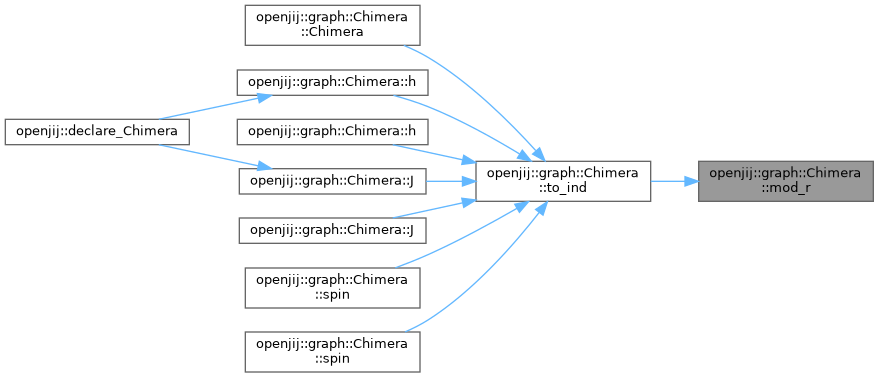

Here is the caller graph for this function:

◆ spin() [1/2]

template<typename FloatType = double>

const Spin & openjij::graph::Chimera< FloatType >::spin	(	const Spins &	spins,
		std::size_t	r,
		std::size_t	c,
		std::size_t	i
	)		const

inline

derive spin value at the index (row x column)

Parameters

spins	spin array
r	row index
c	column index
i	in-chimera index

Returns: corresponding spin

References openjij::graph::json_parse(), and openjij::graph::Chimera< FloatType >::to_ind().

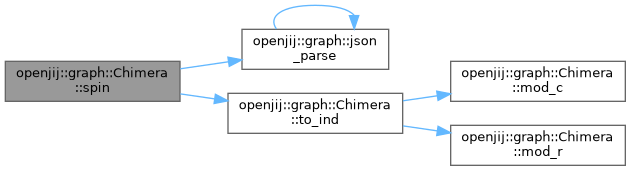

Here is the call graph for this function:

◆ spin() [2/2]

template<typename FloatType = double>

Spin & openjij::graph::Chimera< FloatType >::spin	(	Spins &	spins,
		std::size_t	r,
		std::size_t	c,
		std::size_t	i
	)		const

inline

derive spin value at the index (row x column)

Parameters

spins	spin array
r	row index
c	column index
i	in-chimera index

Returns: corresponding spin

References openjij::graph::json_parse(), and openjij::graph::Chimera< FloatType >::to_ind().

Here is the call graph for this function:

◆ to_ind()

template<typename FloatType = double>

Index openjij::graph::Chimera< FloatType >::to_ind	(	std::int64_t	r,
		std::int64_t	c,
		std::int64_t	i
	)		const

inline

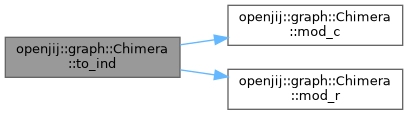

convert from (row x column x in-chimera) index to global index

Parameters

r	row index
c	column index
i	in-chimera index

Returns: corresponding global index

References openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, openjij::graph::Chimera< FloatType >::_num_row, openjij::graph::Chimera< FloatType >::mod_c(), and openjij::graph::Chimera< FloatType >::mod_r().

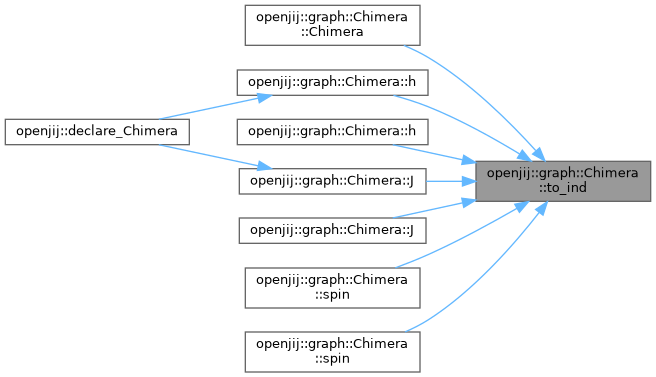

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::spin(), and openjij::graph::Chimera< FloatType >::spin().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ to_rci()

template<typename FloatType = double>

ChimeraIndex openjij::graph::Chimera< FloatType >::to_rci ( Index ind ) const

inline

convert from global index to (row x column x in-chimera) index

Parameters

ind

Returns

References openjij::graph::Chimera< FloatType >::_num_column, openjij::graph::Chimera< FloatType >::_num_in_chimera, and openjij::graph::Graph::get_num_spins().

Referenced by openjij::graph::Chimera< FloatType >::_checkpair().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _init_val

template<typename FloatType = double>

FloatType openjij::graph::Chimera< FloatType >::_init_val

private

initial value to be set to inreactions

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::J(), and openjij::graph::Chimera< FloatType >::J().

◆ _num_column

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::_num_column

private

number of columns

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::get_num_column(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::mod_c(), openjij::graph::Chimera< FloatType >::to_ind(), and openjij::graph::Chimera< FloatType >::to_rci().

◆ _num_in_chimera

template<typename FloatType = double>

constexpr std::size_t openjij::graph::Chimera< FloatType >::_num_in_chimera = 8

staticconstexprprivate

number of spins in each chimera units (8)

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::get_num_in_chimera(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::to_ind(), and openjij::graph::Chimera< FloatType >::to_rci().

◆ _num_row

template<typename FloatType = double>

std::size_t openjij::graph::Chimera< FloatType >::_num_row

private

number of rows

Referenced by openjij::graph::Chimera< FloatType >::Chimera(), openjij::graph::Chimera< FloatType >::get_num_row(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::h(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::J(), openjij::graph::Chimera< FloatType >::mod_r(), and openjij::graph::Chimera< FloatType >::to_ind().

The documentation for this class was generated from the following file:

chimera.hpp

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Chimera() [1/4]

◆ Chimera() [2/4]

◆ Chimera() [3/4]

◆ Chimera() [4/4]

Member Function Documentation

◆ _checkpair()

◆ get_num_column()

◆ get_num_in_chimera()

◆ get_num_row()

◆ h() [1/2]

◆ h() [2/2]

◆ J() [1/2]

◆ J() [2/2]

◆ mod_c()

◆ mod_r()

◆ spin() [1/2]

◆ spin() [2/2]

◆ to_ind()

◆ to_rci()

Member Data Documentation

◆ _init_val

◆ _num_column

◆ _num_in_chimera

◆ _num_row
