openjij::graph::Dense< FloatType > Class Template Reference

two-body all-to-all interactions The Hamiltonian is like More...

#include <dense.hpp>

Inheritance diagram for openjij::graph::Dense< FloatType >:

Collaboration diagram for openjij::graph::Dense< FloatType >:

Public Types
using	Interactions = Eigen::Matrix< FloatType, Eigen::Dynamic, Eigen::Dynamic, Eigen::RowMajor >
	interaction type (Eigen) The stored matrix has the following triangular form:
using	value_type = FloatType
	float type

Public Member Functions
	Dense (std::size_t num_spins)
	Dense constructor.
	Dense (const json &j)
	Dense constructor (from nlohmann::json)
void	set_interaction_matrix (const Interactions &interaction)
	set interaction matrix from Eigen Matrix.
	Dense (const Dense< FloatType > &)=default
	Dense copy constructor.
	Dense (Dense< FloatType > &&)=default
	Dense move constructor.
FloatType	calc_energy (const Spins &spins) const
	calculate total energy
FloatType	calc_energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const
FloatType	energy (const Spins &spins) const
	calculate total energy
FloatType	energy (const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &spins) const
FloatType &	J (Index i, Index j)
	access J_{ij}
const FloatType &	J (Index i, Index j) const
	access J_{ij}
FloatType &	h (Index i)
	access h_{i} (local field)
const FloatType &	h (Index i) const
	access h_{i} (local field)
const Interactions	get_interactions () const
	get interactions (Eigen Matrix)
Public Member Functions inherited from openjij::graph::Graph
	Graph (std::size_t num_spins)
	Graph constructor.
template<typename RandomNumberEngine >
const Spins	gen_spin (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.
template<typename RandomNumberEngine >
const Binaries	gen_binary (RandomNumberEngine &random_numder_engine) const
	generate spins randomly.
std::size_t	get_num_spins () const noexcept
	get number of spins
std::size_t	size () const noexcept
	get number of spins

Private Attributes
Interactions	_J
	interactions

Detailed Description

template<typename FloatType>
class openjij::graph::Dense< FloatType >

two-body all-to-all interactions The Hamiltonian is like

\[ H = \sum_{i<j}J_{ij} \sigma_i \sigma_j + \sum_{i}h_{i} \sigma_i \]

Template Parameters

FloatType

float type of Sparse class (double or float)

Member Typedef Documentation

Interactions

template<typename FloatType >

using openjij::graph::Dense< FloatType >::Interactions = Eigen::Matrix<FloatType, Eigen::Dynamic, Eigen::Dynamic, Eigen::RowMajor>

interaction type (Eigen) The stored matrix has the following triangular form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ 0 & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & J_{N-1,N-1} & h_{N-1}\\ 0 & 0 & \cdots & 0 & 1 \\ \end{pmatrix} \]

value_type

template<typename FloatType >

using openjij::graph::Dense< FloatType >::value_type = FloatType

float type

Constructor & Destructor Documentation

Dense() [1/4]

template<typename FloatType >

openjij::graph::Dense< FloatType >::Dense ( std::size_t  num_spins )

inlineexplicit

Dense constructor.

Parameters

num_spins

the number of spins

References openjij::graph::Dense< FloatType >::_J.

Dense() [2/4]

template<typename FloatType >

openjij::graph::Dense< FloatType >::Dense ( const json &  j )

inline

Dense constructor (from nlohmann::json)

Parameters

j	JSON object this object must be a serialized object of dense BQM.

References openjij::graph::json_parse().

Here is the call graph for this function:

Dense() [3/4]

template<typename FloatType >

openjij::graph::Dense< FloatType >::Dense ( const Dense< FloatType > &  )

default

Dense copy constructor.

Dense() [4/4]

template<typename FloatType >

openjij::graph::Dense< FloatType >::Dense ( Dense< FloatType > &&  )

default

Dense move constructor.

Member Function Documentation

calc_energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::Dense< FloatType >::calc_energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &  spins ) const

inline

References openjij::graph::Dense< FloatType >::energy(), and openjij::graph::json_parse().

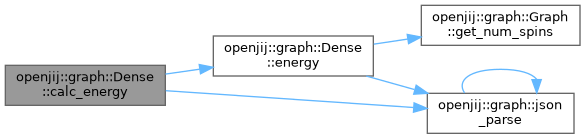

Here is the call graph for this function:

calc_energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::Dense< FloatType >::calc_energy ( const Spins &  spins ) const

inline

calculate total energy

Parameters

spins

Deprecated:

use energy(spins)

Returns

corresponding energy

References openjij::graph::Dense< FloatType >::energy().

Referenced by openjij::declare_Dense().

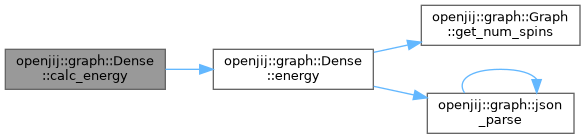

Here is the call graph for this function:

Here is the caller graph for this function:

energy() [1/2]

template<typename FloatType >

FloatType openjij::graph::Dense< FloatType >::energy ( const Eigen::Matrix< FloatType, Eigen::Dynamic, 1, Eigen::ColMajor > &  spins ) const

inline

References openjij::graph::Dense< FloatType >::energy(), openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

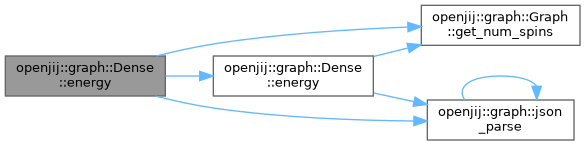

Here is the call graph for this function:

energy() [2/2]

template<typename FloatType >

FloatType openjij::graph::Dense< FloatType >::energy ( const Spins &  spins ) const

inline

calculate total energy

Parameters

spins

Returns

corresponding energy

References openjij::graph::Dense< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

Referenced by openjij::graph::Dense< FloatType >::calc_energy(), openjij::graph::Dense< FloatType >::calc_energy(), and openjij::graph::Dense< FloatType >::energy().

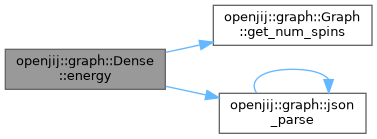

Here is the call graph for this function:

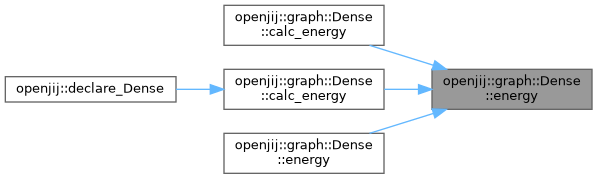

Here is the caller graph for this function:

get_interactions()

template<typename FloatType >

const Interactions openjij::graph::Dense< FloatType >::get_interactions ( ) const

inline

get interactions (Eigen Matrix)

The returned matrix has the following symmetric form:

\[ \begin{pmatrix} J_{0,0} & J_{0,1} & \cdots & J_{0,N-1} & h_{0}\\ J_{0,1} & J_{1,1} & \cdots & J_{1,N-1} & h_{1}\\ \vdots & \vdots & \vdots & \vdots & \vdots \\ J_{0,N-1} & J_{N-1,1} & \cdots & J_{N-1,N-1} & h_{N-1}\\ h_{0} & h_{1} & \cdots & h_{N-1} & 1 \\ \end{pmatrix} \]

Returns

Eigen Matrix

References openjij::graph::json_parse().

Here is the call graph for this function:

h() [1/2]

template<typename FloatType >

FloatType & openjij::graph::Dense< FloatType >::h ( Index  i )

inline

access h_{i} (local field)

Parameters

i

Index i

Returns

h_{i}

References openjij::graph::Graph::get_num_spins(), openjij::graph::Dense< FloatType >::J(), and openjij::graph::json_parse().

Referenced by openjij::declare_Dense(), and openjij::utility::gen_matrix_from_graph().

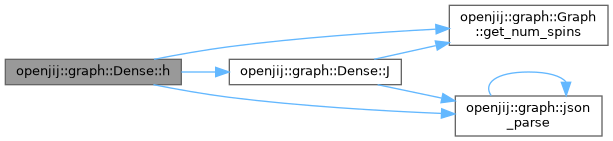

Here is the call graph for this function:

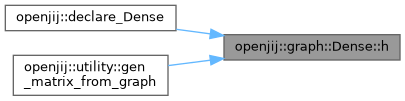

Here is the caller graph for this function:

h() [2/2]

template<typename FloatType >

const FloatType & openjij::graph::Dense< FloatType >::h ( Index  i ) const

inline

access h_{i} (local field)

Parameters

i

Index i

Returns

h_{i}

References openjij::graph::Graph::get_num_spins(), openjij::graph::Dense< FloatType >::J(), and openjij::graph::json_parse().

Here is the call graph for this function:

J() [1/2]

template<typename FloatType >

FloatType & openjij::graph::Dense< FloatType >::J ( Index  i, Index  j  )

inline

access J_{ij}

Parameters

i	Index i
j	Index j

Returns

J_{ij}

References openjij::graph::Dense< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

Referenced by openjij::declare_Dense(), openjij::utility::gen_matrix_from_graph(), openjij::graph::Dense< FloatType >::h(), and openjij::graph::Dense< FloatType >::h().

Here is the call graph for this function:

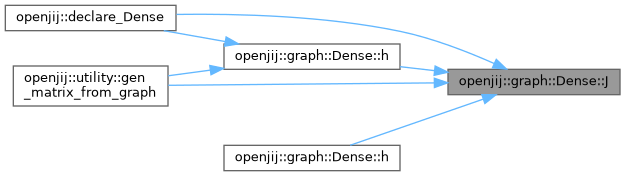

Here is the caller graph for this function:

J() [2/2]

template<typename FloatType >

const FloatType & openjij::graph::Dense< FloatType >::J ( Index  i, Index  j  ) const

inline

access J_{ij}

Parameters

i	Index i
j	Index j

Returns

J_{ij}

References openjij::graph::Dense< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

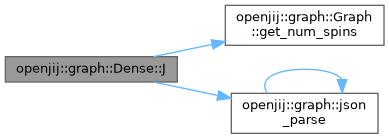

Here is the call graph for this function:

set_interaction_matrix()

template<typename FloatType >

void openjij::graph::Dense< FloatType >::set_interaction_matrix ( const Interactions &  interaction )

inline

set interaction matrix from Eigen Matrix.

Parameters

interaction

Eigen matrix

References openjij::graph::Dense< FloatType >::_J, openjij::graph::Graph::get_num_spins(), and openjij::graph::json_parse().

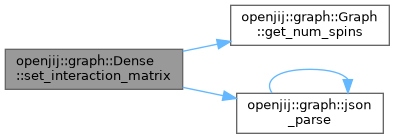

Here is the call graph for this function:

Member Data Documentation

_J

template<typename FloatType >

Interactions openjij::graph::Dense< FloatType >::_J

private

interactions

Referenced by openjij::graph::Dense< FloatType >::Dense(), openjij::graph::Dense< FloatType >::energy(), openjij::graph::Dense< FloatType >::J(), openjij::graph::Dense< FloatType >::J(), and openjij::graph::Dense< FloatType >::set_interaction_matrix().

---

The documentation for this class was generated from the following file:

• dense.hpp
