Inheritance diagram for openjij.sampler.sa_sampler.SASampler:

[legend]

Collaboration diagram for openjij.sampler.sa_sampler.SASampler:

[legend]

Public Member Functions
	parameters (self)

	__init__ (self)

"oj.sampler.response.Response"	sample (self, Union["openj.model.model.BinaryQuadraticModel", dimod.BinaryQuadraticModel] bqm, Optional[float] beta_min=None, Optional[float] beta_max=None, Optional[int] num_sweeps=None, Optional[int] num_reads=None, Optional[list] schedule=None, Optional[Union[list, dict]] initial_state=None, Optional[str] updater=None, Optional[bool] sparse=None, Optional[bool] reinitialize_state=None, Optional[int] seed=None)

	sample_hubo (self, dict[tuple, float] J, Optional[str] vartype=None, int num_sweeps=1000, int num_reads=1, int num_threads=1, Optional[float] beta_min=None, Optional[float] beta_max=None, str updater="METROPOLIS", str random_number_engine="XORSHIFT", Optional[int] seed=None, str temperature_schedule="GEOMETRIC")

"oj.sampler.response.Response"	sample_quio (self, dict[tuple, float] J, dict[Any, tuple[int, int]] bound_list, int num_sweeps=1000, int num_reads=1, int num_threads=1, Optional[float] beta_min=None, Optional[float] beta_max=None, str updater="OPT_METROPOLIS", str random_number_engine="XORSHIFT", Optional[int] seed=None, str temperature_schedule="GEOMETRIC", bool log_history=False)

"oj.sampler.response.Response"	sample_huio (self, dict[tuple, float] J, dict[Any, tuple[int, int]] bound_list, int num_sweeps=1000, int num_reads=1, int num_threads=1, Optional[float] beta_min=None, Optional[float] beta_max=None, str updater="OPT_METROPOLIS", str random_number_engine="XORSHIFT", Optional[int] seed=None, str temperature_schedule="GEOMETRIC", bool log_history=False)

Public Member Functions inherited from openjij.sampler.sampler.BaseSampler
	sample_ising (self, h, J, **parameters)

	sample_qubo (self, Q, **parameters)

Public Attributes
	schedule_info

	index_list

	num_variables

	index_map

Public Attributes inherited from openjij.sampler.sampler.BaseSampler
	sample_ising

	sample_qubo

Protected Member Functions
	_convert_validation_schedule (self, schedule)

"openjij.sampler.response.Response"	_sample_hubo_old (self, Union[dict, "openj.model.model.BinaryPolynomialModel", cimod.BinaryPolynomialModel] J, Optional[str] vartype=None, Optional[float] beta_min=None, Optional[float] beta_max=None, Optional[int] num_sweeps=None, Optional[int] num_reads=None, Optional[list] schedule=None, Optional[Union[list, dict]] initial_state=None, Optional[str] updater=None, Optional[bool] reinitialize_state=None, Optional[int] seed=None)

"oj.sampler.response.Response"	_base_integer_sampler (self, dict[tuple, float] J, dict[Any, tuple[int, int]] bound_list, bool include_higher_order, int num_sweeps=1000, int num_reads=1, int num_threads=1, Optional[float] beta_min=None, Optional[float] beta_max=None, str updater="OPT_METROPOLIS", str random_number_engine="XORSHIFT", Optional[int] seed=None, str temperature_schedule="GEOMETRIC", bool log_history=False)

Protected Member Functions inherited from openjij.sampler.sampler.BaseSampler
	_set_params (self, **kwargs)

	_sampling (self, **kwargs)

	_cxxjij_sampling (self, model, init_generator, algorithm, system, reinitialize_state=None, seed=None, offset=None)

	_get_result (self, system, model)

Protected Attributes
	_default_params

	_params

	_make_system

	_algorithm

Additional Inherited Members
Static Public Attributes inherited from openjij.sampler.sampler.BaseSampler
	properties = dict()

Detailed Description

Sampler with Simulated Annealing (SA).

Args:
    beta_min (float):
        Minmum beta (inverse temperature).
        You can overwrite in methods .sample_*.

    beta_max (float):
        Maximum beta (inverse temperature).
        You can overwrite in methods .sample_*.

    num_reads (int):
        number of sampling (algorithm) runs. defaults None.
        You can overwrite in methods .sample_*.

    num_sweeps (int):
        number of MonteCarlo steps during SA. defaults None.
        You can overwrite in methods .sample_*.

    schedule_info (dict):
        Information about an annealing schedule.

Raises:
    ValueError: If schedules or variables violate as below.
    - not list or numpy.array.
    - not list of tuple (beta : float, step_length : int).
    - beta is less than zero.

Constructor & Destructor Documentation

◆ init()

openjij.sampler.sa_sampler.SASampler.__init__ ( self )

Member Function Documentation

◆ _base_integer_sampler()

"oj.sampler.response.Response" openjij.sampler.sa_sampler.SASampler._base_integer_sampler	(		self,
		dict[tuple, float]	J,
		dict[Any, tuple[int, int]]	bound_list,
		bool	include_higher_order,
		int	num_sweeps = `1000`,
		int	num_reads = `1`,
		int	num_threads = `1`,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		str	updater = `"OPT_METROPOLIS"`,
		str	random_number_engine = `"XORSHIFT"`,
		Optional[int]	seed = `None`,
		str	temperature_schedule = `"GEOMETRIC"`,
		bool	log_history = `False`
	)

protected

Referenced by openjij.sampler.sa_sampler.SASampler.sample_huio(), and openjij.sampler.sa_sampler.SASampler.sample_quio().

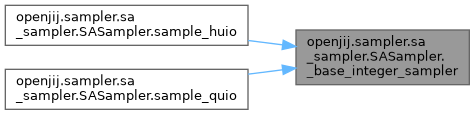

Here is the caller graph for this function:

◆ _convert_validation_schedule()

openjij.sampler.sa_sampler.SASampler._convert_validation_schedule	(	self,
		schedule
	)

protected

Checks if the schedule is valid and returns cxxjij schedule.

Referenced by openjij.sampler.sqa_sampler.SQASampler._annealing_schedule_setting().

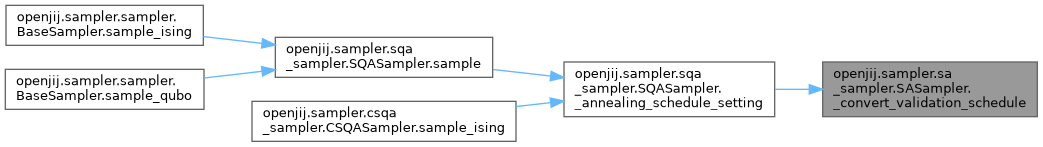

Here is the caller graph for this function:

◆ _sample_hubo_old()

"openjij.sampler.response.Response" openjij.sampler.sa_sampler.SASampler._sample_hubo_old	(		self,
		Union[ dict, "openj.model.model.BinaryPolynomialModel", cimod.BinaryPolynomialModel ]	J,
		Optional[str]	vartype = `None`,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		Optional[int]	num_sweeps = `None`,
		Optional[int]	num_reads = `None`,
		Optional[list]	schedule = `None`,
		Optional[Union[list, dict]]	initial_state = `None`,
		Optional[str]	updater = `None`,
		Optional[bool]	reinitialize_state = `None`,
		Optional[int]	seed = `None`
	)

protected

Sampling from higher order unconstrainted binary optimization.

Args:
    J (dict): Interactions.
    vartype (str, openjij.VarType): "SPIN" or "BINARY".
    beta_min (float, optional): Minimum beta (initial inverse temperature). Defaults to None.
    beta_max (float, optional): Maximum beta (final inverse temperature). Defaults to None.
    schedule (list, optional): schedule list. Defaults to None.
    num_sweeps (int, optional): number of sweeps. Defaults to None.
    num_reads (int, optional): number of reads. Defaults to 1.
    init_state (list, optional): initial state. Defaults to None.
    reinitialize_state (bool): if true reinitialize state for each run
    seed (int, optional): seed for Monte Carlo algorithm. Defaults to None.

Returns:
    :class:`openjij.sampler.response.Response`: results

Examples::
    for Ising case::
        >>> sampler = openjij.SASampler()
        >>> J = {(0,): -1, (0, 1): -1, (0, 1, 2): 1}
        >>> response = sampler.sample_hubo(J, "SPIN")

    for Binary case::
        >>> sampler = ooenjij.SASampler()
        >>> J = {(0,): -1, (0, 1): -1, (0, 1, 2): 1}
        >>> response = sampler.sample_hubo(J, "BINARY")

References openjij.sampler.sampler.BaseSampler._cxxjij_sampling(), openjij.sampler.csqa_sampler.CSQASampler._params, openjij.sampler.sa_sampler.SASampler._params, openjij.sampler.sqa_sampler.SQASampler._params, openjij.sampler.sampler.BaseSampler._set_params(), openjij.sampler.sa_sampler.geometric_hubo_beta_schedule(), openjij.sampler.sa_sampler.SASampler.schedule_info, and openjij.sampler.sqa_sampler.SQASampler.schedule_info.

Referenced by openjij.sampler.sa_sampler.SASampler.sample_hubo().

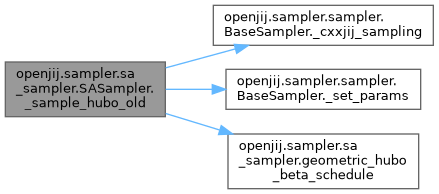

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parameters()

openjij.sampler.sa_sampler.SASampler.parameters ( self )

Reimplemented from openjij.sampler.sampler.BaseSampler.

◆ sample()

"oj.sampler.response.Response" openjij.sampler.sa_sampler.SASampler.sample	(		self,
		Union[ "openj.model.model.BinaryQuadraticModel", dimod.BinaryQuadraticModel ]	bqm,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		Optional[int]	num_sweeps = `None`,
		Optional[int]	num_reads = `None`,
		Optional[list]	schedule = `None`,
		Optional[Union[list, dict]]	initial_state = `None`,
		Optional[str]	updater = `None`,
		Optional[bool]	sparse = `None`,
		Optional[bool]	reinitialize_state = `None`,
		Optional[int]	seed = `None`
	)

Sample Ising model.

Args:
    bqm (openjij.model.model.BinaryQuadraticModel) binary quadratic model
    beta_min (float): minimal value of inverse temperature
    beta_max (float): maximum value of inverse temperature
    num_sweeps (int): number of sweeps
    num_reads (int): number of reads
    schedule (list): list of inverse temperature
    initial_state (dict): initial state
    updater(str): updater algorithm
    sparse (bool): use sparse matrix or not.
    reinitialize_state (bool): if true reinitialize state for each run
    seed (int): seed for Monte Carlo algorithm
Returns:
    :class:`openjij.sampler.response.Response`: results

Examples:

    for Ising case::

        >>> h = {0: -1, 1: -1, 2: 1, 3: 1}
        >>> J = {(0, 1): -1, (3, 4): -1}
        >>> sampler = openj.SASampler()
        >>> res = sampler.sample_ising(h, J)

    for QUBO case::

        >>> Q = {(0, 0): -1, (1, 1): -1, (2, 2): 1, (3, 3): 1, (4, 4): 1, (0, 1): -1, (3, 4): 1}
        >>> sampler = openj.SASampler()
        >>> res = sampler.sample_qubo(Q)

Reimplemented from openjij.sampler.sampler.BaseSampler.

References openjij.sampler.csqa_sampler.CSQASampler._params, openjij.sampler.sa_sampler.SASampler._params, openjij.sampler.sqa_sampler.SQASampler._params, openjij.sampler.sampler.BaseSampler._set_params(), and openjij.sampler.sa_sampler.geometric_ising_beta_schedule().

Referenced by openjij.sampler.sampler.BaseSampler.sample_ising(), and openjij.sampler.sampler.BaseSampler.sample_qubo().

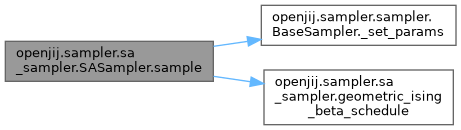

Here is the call graph for this function:

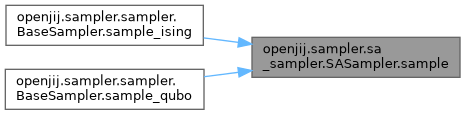

Here is the caller graph for this function:

◆ sample_hubo()

openjij.sampler.sa_sampler.SASampler.sample_hubo	(		self,
		dict[tuple, float]	J,
		Optional[str]	vartype = `None`,
		int	num_sweeps = `1000`,
		int	num_reads = `1`,
		int	num_threads = `1`,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		str	updater = `"METROPOLIS"`,
		str	random_number_engine = `"XORSHIFT"`,
		Optional[int]	seed = `None`,
		str	temperature_schedule = `"GEOMETRIC"`
	)

Sampling from higher order unconstrained binary optimization.

Args:
    J (dict): Interactions.
    vartype (str): "SPIN" or "BINARY".
    num_sweeps (int, optional): The number of sweeps. Defaults to 1000.
    num_reads (int, optional): The number of reads. Defaults to 1.
    num_threads (int, optional): The number of threads. Parallelized for each sampling with num_reads > 1. Defaults to 1.
    beta_min (float, optional): Minimum beta (initial inverse temperature). Defaults to None.
    beta_max (float, optional): Maximum beta (final inverse temperature). Defaults to None.
    updater (str, optional): Updater. One can choose "METROPOLIS", "HEAT_BATH", or "k-local". Defaults to "METROPOLIS".
    random_number_engine (str, optional): Random number engine. One can choose "XORSHIFT", "MT", or "MT_64". Defaults to "XORSHIFT".
    seed (int, optional): seed for Monte Carlo algorithm. Defaults to None.
    temperature_schedule (str, optional): Temperature schedule. One can choose "LINEAR", "GEOMETRIC". Defaults to "GEOMETRIC".

Returns:
    :class:`openjij.sampler.response.Response`: results

Examples::
    for Ising case::
        >>> sampler = openjij.SASampler()
        >>> J = {(0,): -1, (0, 1): -1, (0, 1, 2): 1}
        >>> response = sampler.sample_hubo(J, "SPIN")

    for Binary case::
        >>> sampler = openjij.SASampler()
        >>> J = {(0,): -1, (0, 1): -1, (0, 1, 2): 1}
        >>> response = sampler.sample_hubo(J, "BINARY")

References openjij.sampler.sa_sampler.SASampler._sample_hubo_old().

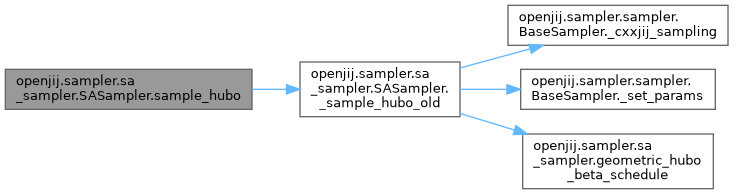

Here is the call graph for this function:

◆ sample_huio()

"oj.sampler.response.Response" openjij.sampler.sa_sampler.SASampler.sample_huio	(		self,
		dict[tuple, float]	J,
		dict[Any, tuple[int, int]]	bound_list,
		int	num_sweeps = `1000`,
		int	num_reads = `1`,
		int	num_threads = `1`,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		str	updater = `"OPT_METROPOLIS"`,
		str	random_number_engine = `"XORSHIFT"`,
		Optional[int]	seed = `None`,
		str	temperature_schedule = `"GEOMETRIC"`,
		bool	log_history = `False`
	)

Sampling from higher-order unconstrained integer optimization (HUIO).
This method solves integer optimization problems that can include variable interactions of any order (linear, quadratic, cubic, and higher).

Args:
    J (dict): Interactions. Keys are tuples of variable indices, values are interaction coefficients.
    bound_list (dict): Variable bounds. Keys are variable indices, values are tuples of (lower_bound, upper_bound) for integer variables.
    num_sweeps (int, optional): The number of sweeps. Defaults to 1000.
    num_reads (int, optional): The number of reads. Defaults to 1.
    num_threads (int, optional): The number of threads. Parallelized for each sampling with num_reads > 1. Defaults to 1.
    beta_min (float, optional): Minimum beta (initial inverse temperature). Defaults to None.
    beta_max (float, optional): Maximum beta (final inverse temperature). Defaults to None.
    updater (str, optional): Updater. One can choose "METROPOLIS", "OPT_METROPOLIS", "HEAT_BATH", and "SUWA_TODO". Defaults to "OPT_METROPOLIS".
    random_number_engine (str, optional): Random number engine. One can choose "XORSHIFT", "MT", or "MT_64". Defaults to "XORSHIFT".
    seed (int, optional): Seed for Monte Carlo algorithm. Defaults to None.
    temperature_schedule (str, optional): Temperature schedule. One can choose "LINEAR", "GEOMETRIC". Defaults to "GEOMETRIC".
    log_history (bool, optional): If True, logs the energy and temperature history. Defaults to False.

Returns:
    :class:`openjij.sampler.response.Response`: results

Examples::
    To solve f(x) = -x_0 - x_0*x_1 + x_0*x_1*x_2 with bounds:
    x_0 in [-10, 10], x_1 in [3, 10], x_2 in [-2, -1], use the following code:
    >>> import openjij
    >>> sampler = openjij.SASampler()
    >>> J = {(0,): -1, (0, 1): -1, (0, 1, 2): 1}
    >>> bound_list = {0: (-10, 10), 1: (3, 10), 2: (-2, -1)}
    >>> response = sampler.sample_huio(J, bound_list)

References openjij.sampler.sa_sampler.SASampler._base_integer_sampler().

Here is the call graph for this function:

◆ sample_quio()

"oj.sampler.response.Response" openjij.sampler.sa_sampler.SASampler.sample_quio	(		self,
		dict[tuple, float]	J,
		dict[Any, tuple[int, int]]	bound_list,
		int	num_sweeps = `1000`,
		int	num_reads = `1`,
		int	num_threads = `1`,
		Optional[float]	beta_min = `None`,
		Optional[float]	beta_max = `None`,
		str	updater = `"OPT_METROPOLIS"`,
		str	random_number_engine = `"XORSHIFT"`,
		Optional[int]	seed = `None`,
		str	temperature_schedule = `"GEOMETRIC"`,
		bool	log_history = `False`
	)

Sampling from quadratic unconstrained integer optimization (QUIO).
This method solves integer optimization problems with interactions up to quadratic order (linear and quadratic terms only).

Args:
    J (dict): Interactions. Keys are tuples of variable indices, values are interaction coefficients.
    bound_list (dict): Variable bounds. Keys are variable indices, values are tuples of (lower_bound, upper_bound) for integer variables.
    num_sweeps (int, optional): The number of sweeps. Defaults to 1000.
    num_reads (int, optional): The number of reads. Defaults to 1.
    num_threads (int, optional): The number of threads. Parallelized for each sampling with num_reads > 1. Defaults to 1.
    beta_min (float, optional): Minimum beta (initial inverse temperature). Defaults to None.
    beta_max (float, optional): Maximum beta (final inverse temperature). Defaults to None.
    updater (str, optional): Updater. One can choose "METROPOLIS", "OPT_METROPOLIS", "HEAT_BATH", and "SUWA_TODO". Defaults to "OPT_METROPOLIS".
    random_number_engine (str, optional): Random number engine. One can choose "XORSHIFT", "MT", or "MT_64". Defaults to "XORSHIFT".
    seed (int, optional): Seed for Monte Carlo algorithm. Defaults to None.
    temperature_schedule (str, optional): Temperature schedule. One can choose "LINEAR", "GEOMETRIC". Defaults to "GEOMETRIC".
    log_history (bool, optional): If True, logs the energy and temperature history. Defaults to False.

Returns:
    :class:`openjij.sampler.response.Response`: results

Examples::
    To solve f(x) = -x_0 - x_0*x_1 + x_1*x_2 with bounds:
    x_0 in [-10, 10], x_1 in [3, 10], use the following code:
    >>> import openjij
    >>> sampler = openjij.SASampler()
    >>> J = {(0,): -1, (0, 1): -1, (1, 2): 1}
    >>> bound_list = {0: (-10, 10), 1: (3, 10), 2: (-2, -1)}
    >>> response = sampler.sample_quio(J, bound_list)

References openjij.sampler.sa_sampler.SASampler._base_integer_sampler().

Here is the call graph for this function:

Member Data Documentation

◆ _algorithm

openjij.sampler.sa_sampler.SASampler._algorithm

protected

Referenced by openjij.sampler.sqa_sampler.SQASampler.sample().

◆ _default_params

openjij.sampler.sa_sampler.SASampler._default_params

protected

Referenced by openjij.sampler.sampler.BaseSampler._set_params().

◆ _make_system

openjij.sampler.sa_sampler.SASampler._make_system

protected

Referenced by openjij.sampler.sqa_sampler.SQASampler.sample().

◆ _params

openjij.sampler.sa_sampler.SASampler._params

protected

Referenced by openjij.sampler.sqa_sampler.SQASampler._annealing_schedule_setting(), openjij.sampler.sa_sampler.SASampler._sample_hubo_old(), openjij.sampler.sampler.BaseSampler._set_params(), openjij.sampler.sa_sampler.SASampler.sample(), openjij.sampler.sqa_sampler.SQASampler.sample(), and openjij.sampler.csqa_sampler.CSQASampler.sample_ising().

◆ index_list

openjij.sampler.sa_sampler.SASampler.index_list

◆ index_map

openjij.sampler.sa_sampler.SASampler.index_map

◆ num_variables

openjij.sampler.sa_sampler.SASampler.num_variables

◆ schedule_info

openjij.sampler.sa_sampler.SASampler.schedule_info

Referenced by openjij.sampler.sa_sampler.SASampler._sample_hubo_old(), openjij.sampler.sqa_sampler.SQASampler.sample(), and openjij.sampler.csqa_sampler.CSQASampler.sample_ising().

The documentation for this class was generated from the following file:

sa_sampler.py

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ __init__()

Member Function Documentation

◆ _base_integer_sampler()

◆ _convert_validation_schedule()

◆ _sample_hubo_old()

◆ parameters()

◆ sample()

◆ sample_hubo()

◆ sample_huio()

◆ sample_quio()

Member Data Documentation

◆ _algorithm

◆ _default_params

◆ _make_system

◆ _params

◆ index_list

◆ index_map

◆ num_variables

◆ schedule_info

◆ init()
