Notebook 1: Quantum Teleportation

In this notebook, we use quantum teleportation to learn a minimal set of Qamomile language features.

• Define a quantum program with @qmc.qkernel

• Reuse quantum operations by calling one qkernel from another

• Distinguish a Qubit from a Bit obtained by measurement

• Use a measurement result in a Python if statement to write a dynamic quantum circuit

• Transpile to a Qiskit and run the circuit with sample()

Quantum teleportation is a protocol for transferring the state of a single qubit.

Suppose Alice and Bob share the Bell pair $\frac{|00\rangle+|11\rangle}{\sqrt2}$, and Alice wants to transfer an unknown state $|\psi\rangle=\alpha|0\rangle+\beta|1\rangle$.

Alice performs operations on the state to be transferred and on her half of the Bell pair. She then measures her two qubits and sends the two classical measurement bits to Bob. Based on the outcome $(m_0,m_1)$ received from Alice, Bob applies $Z^{m_0}X^{m_1}$ to recover $|\psi\rangle$.

Let us use Qamomile to reproduce quantum teleportation as a quantum circuit.

1. Basic Structure of a Qamomile Program¶

In Qamomile, the part that constructs a quantum circuit is separate from the part that runs the circuit on a quantum SDK.

• qamomile.circuit is an API for writing quantum SDK-independent quantum programs with qubits, gates, measurements, and related operations. In this notebook, we use the short name qmc.

• A Python function decorated with @qmc.qkernel becomes a quantum kernel, or qkernel, that represents a quantum computation. Qamomile analyzes the function body and converts it into a quantum SDK-independent intermediate representation.

• QiskitTranspiler converts the quantum kernel into a form that Qiskit can execute.

Qamomile types such as qmc.Qubit and qmc.Bit are used as annotations for the arguments and return values of a quantum kernel. Although a quantum kernel looks like an ordinary Python function, its body describes how to construct a quantum circuit. A Qubit represents quantum information before measurement, while a Bit represents classical information after measurement. Qamomile treats them as different types.

2. Create a Bell Pair¶

First prepare $H|0\rangle=|+\rangle$ on the first qubit, and then apply a CX gate:

If we measure either qubit by itself, 0 and 1 occur at random. However, the two measurement results always agree. We assume that Alice holds the first qubit of this Bell pair and Bob holds the second.

The following code gives a small example that creates a Bell pair. A Qamomile Qubit is a handle that identifies a qubit for use in circuit operations. A gate consumes the input handle and returns an updated handle for the same qubit. Because the consumed handle cannot be used in subsequent operations, capture the return value and update the variable, as in q = qmc.h(q). This follows Qamomile’s affine type rule: each qubit handle can be used at most once.

qmc.qubit("alice") allocates a qubit initialized in $|0\rangle$. The string is a name that makes the qubit easy to identify in a circuit diagram. Because qmc.h is a single-qubit gate, it returns one updated Qubit. Because qmc.cx uses both a control and a target, it returns two updated Qubit values.

bell_pair is a state-preparation qkernel that returns two Qubit values before measurement. By placing the measurements in a separate qkernel, measure_bell_pair, we can reuse the prepared Bell pair later in the teleportation circuit.

qmc.measure(qubit) measures a qubit in the computational basis and converts it into a classical qmc.Bit. After a value has been measured and has become a Bit, quantum gates such as H and CX cannot be applied to it. The return annotation of measure_bell_pair, tuple[qmc.Bit, qmc.Bit], shows that the execution result contains two measured bits.

Run a Quantum Kernel on a Qiskit¶

measure_bell_pair is a quantum SDK-independent quantum program, so defining it does not run it. Execution has three steps:

1. Instantiate QiskitTranspiler().

2. Use transpiler.transpile(measure_bell_pair) to convert the qkernel into an executable program.

3. Use executable.sample(executor, shots=...) to run the circuit the specified number of times.

Because transpilation and execution are separate, we can convert the same quantum kernel for different quantum SDKs. We can also run a transpiled parameterized circuit repeatedly with different parameter values. transpiler.executor() creates a Qiskit executor, which we reuse for the remaining circuit.

sample() runs a quantum kernel that returns measurement values. shots=1024 specifies the number of circuit executions, and .result() retrieves the completed result. Each item in bell_result.results is a pair of the form ((bit0, bit1), count). It contains one measurement outcome and the number of times that outcome occurred. In this example, only 00 and 11 appear, and the sum of all count values is 1024.

3. Use a Measurement Result in an if Statement¶

We now consider teleporting $|+\rangle=H|0\rangle=(|0\rangle+|1\rangle)/\sqrt2$ to Bob.

Alice applies CX(message, alice) and H(message) to her two qubits, message and alice. These operations map the Bell basis to the computational basis. The two measurements that follow are therefore equivalent to a Bell measurement.

m_message and m_alice are classical Bit values that store the measurement results. These if statements are not ordinary Python branches evaluated once on the host. Instead, they are compiled into dynamic control that runs on the target quantum SDK according to the result of each shot. In other words, the body of if m_alice: does not select a branch in advance in Python. It applies X only in shots where the measurement result obtained during circuit execution is 1. A circuit with this type of mid-circuit branching is called a dynamic quantum circuit. To run such a circuit on hardware, the target quantum SDK must support mid-circuit measurements and classically controlled gates.

In teleport_plus_state, we call bell_pair() from the previous section and reuse the Bell-pair preparation. A qkernel can call another qkernel just like an ordinary Python function can call another function. Finally, we apply a Hadamard gate to bob to map the X basis to the Z basis. If the teleported state is $|+\rangle$, the measurement result is always 0.

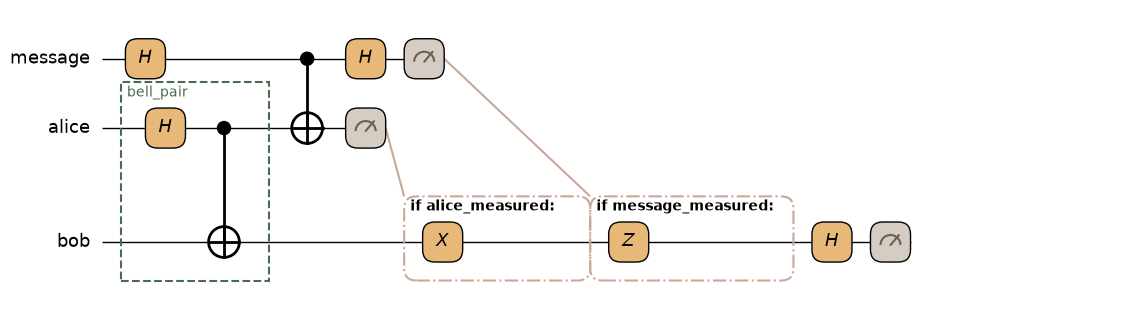

draw() creates a Qamomile circuit diagram from a quantum kernel. Before execution, the diagram lets us check the qubit order, the Bell measurement, and the branches controlled by measurement results. Drawing a circuit does not sample it, so no shot count or executor is required. inline=True expands the body of bell_pair(), and fold_ifs=False displays the correction gates inside each if branch. Check the X correction controlled by m_alice and the Z correction controlled by m_message.

teleport_plus_state calls bell_pair() and reuses Bell-pair preparation as a qkernel. Because it returns three Bit values, every outcome from sample() also has three entries: (m_message, m_alice, bob).

Bob’s measurement result is always 0, while Alice’s measurement results are random. The information in the teleported quantum state therefore does not appear in the two classical bits alone. Bob can recover the state only by combining the shared Bell pair with the conditional corrections.

Summary¶

• Use @qmc.qkernel to describe quantum operations.

• Gates return updated qubit handles, so reassign their return values to variables.

• measure() returns a classical measurement value of type Bit.

• A Python if conditioned on a measured Bit is converted into dynamic control.

• Reuse quantum operations by calling one qkernel from another.

• Run a quantum kernel that returns measurement values with sample().
